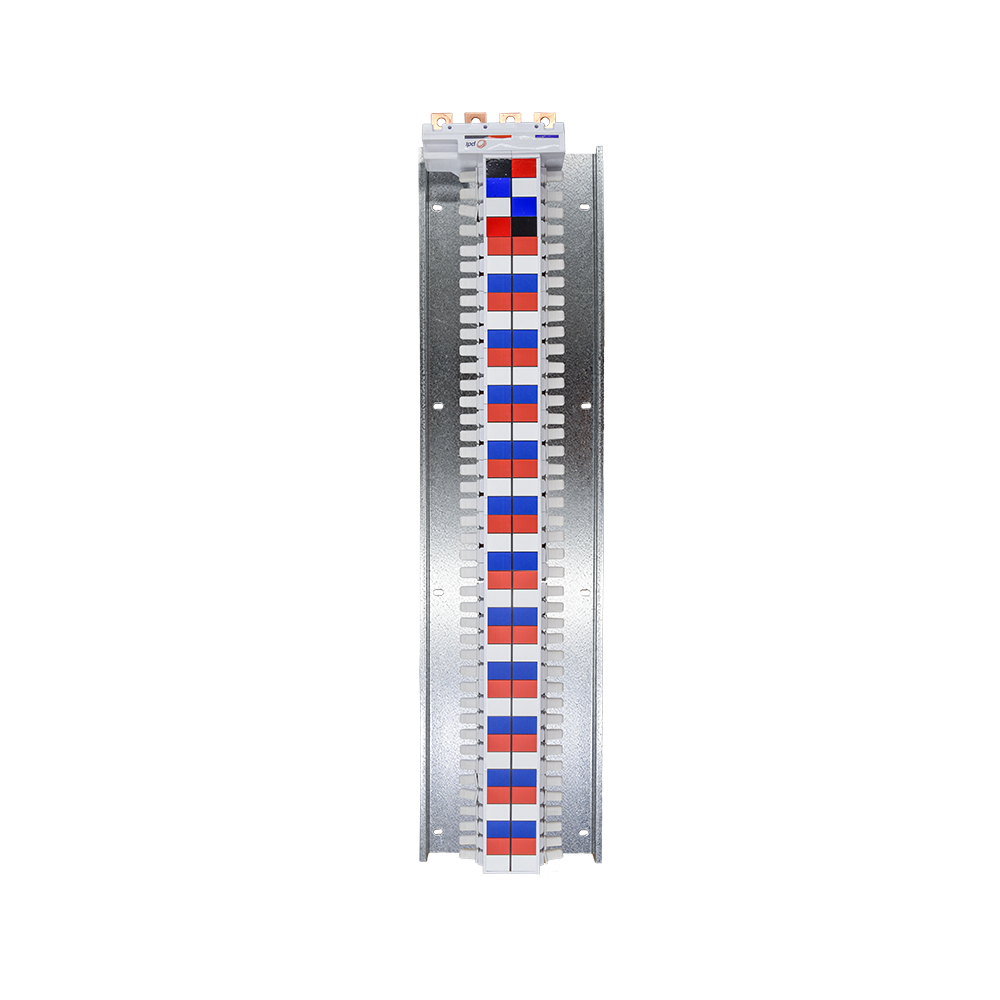

IPD IT43R8/76A25T ENCAP. CHASSIS 8P RWBN+76P RWB 250A

The Encapsulated Chassis 84P is designed for use with S200 breakers in the IA range IPD. It features a top feed and has a withstand rating of 250A. The chassis is made with 2mm thick copper incoming terminals and a 1.2mm thick galvanized iron base. It is coated with duravin SCI-TV for added durability. The chassis consists of 8P RWBN and 76P RWB components, providing reliable performance. It has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA.
