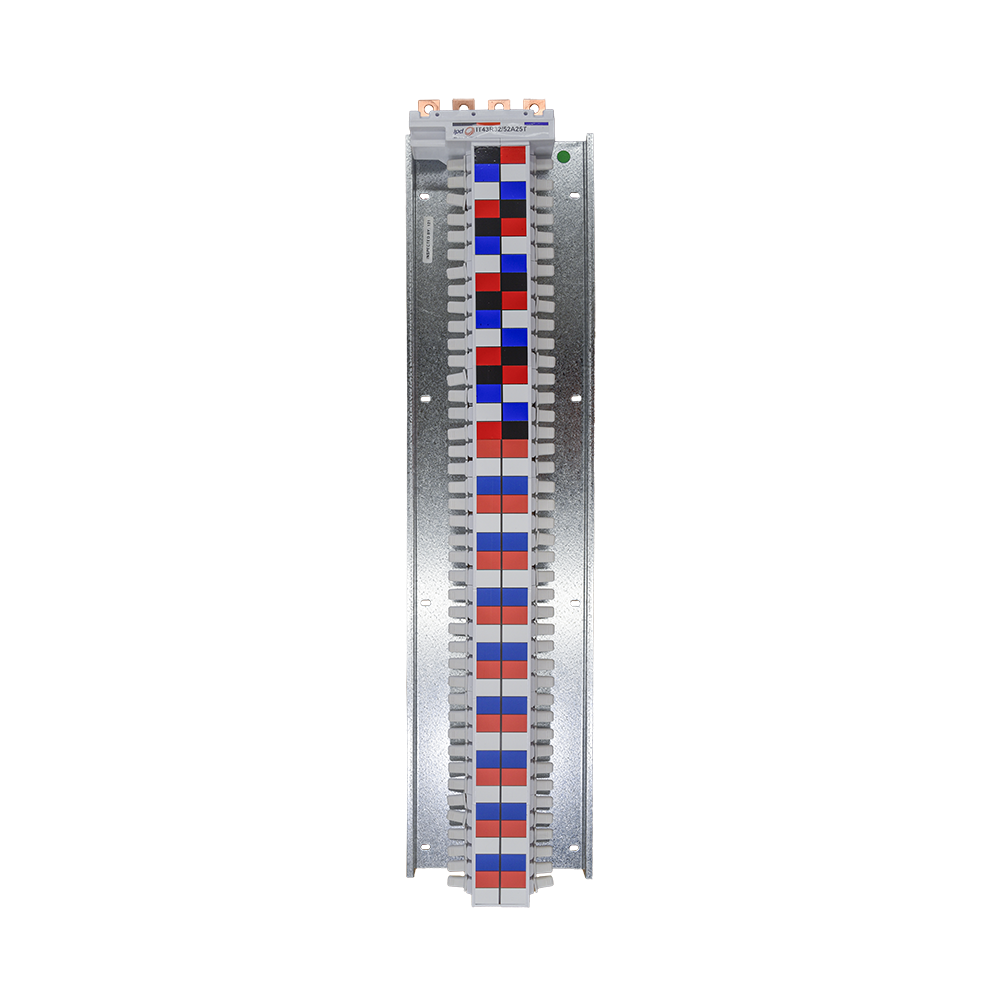

IPD IT43R32/52A25T ENCAP. CHASSIS 32P RWBN+52P RWB 250A

The Encapsulated Chassis 84P is designed for use with S200 breakers in the IA range. It features a total of 84 poles, with 32 poles in the RWBN configuration and 52 poles in the RWB configuration. The chassis has a top feed and can handle a maximum current of 250A. With a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA, this chassis is built to handle high levels of electrical current. The incoming terminals are made of 2mm thick copper, providing excellent conductivity. The base of the chassis is made of galvanized iron and is 1.2mm thick. To ensure durability and protection, the chassis is coated with duravin SCI-TV coating. This coating enhances its resistance to wear and tear, making it suitable for various industrial applications.
