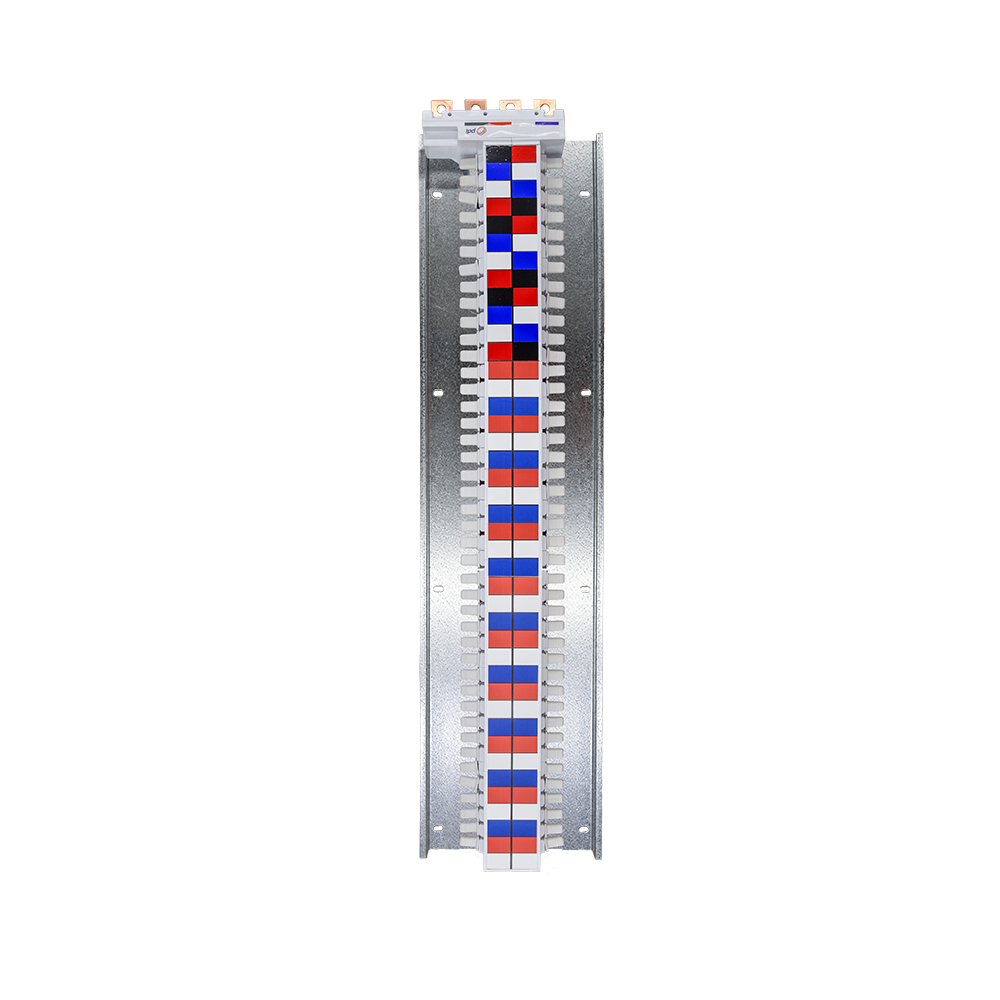

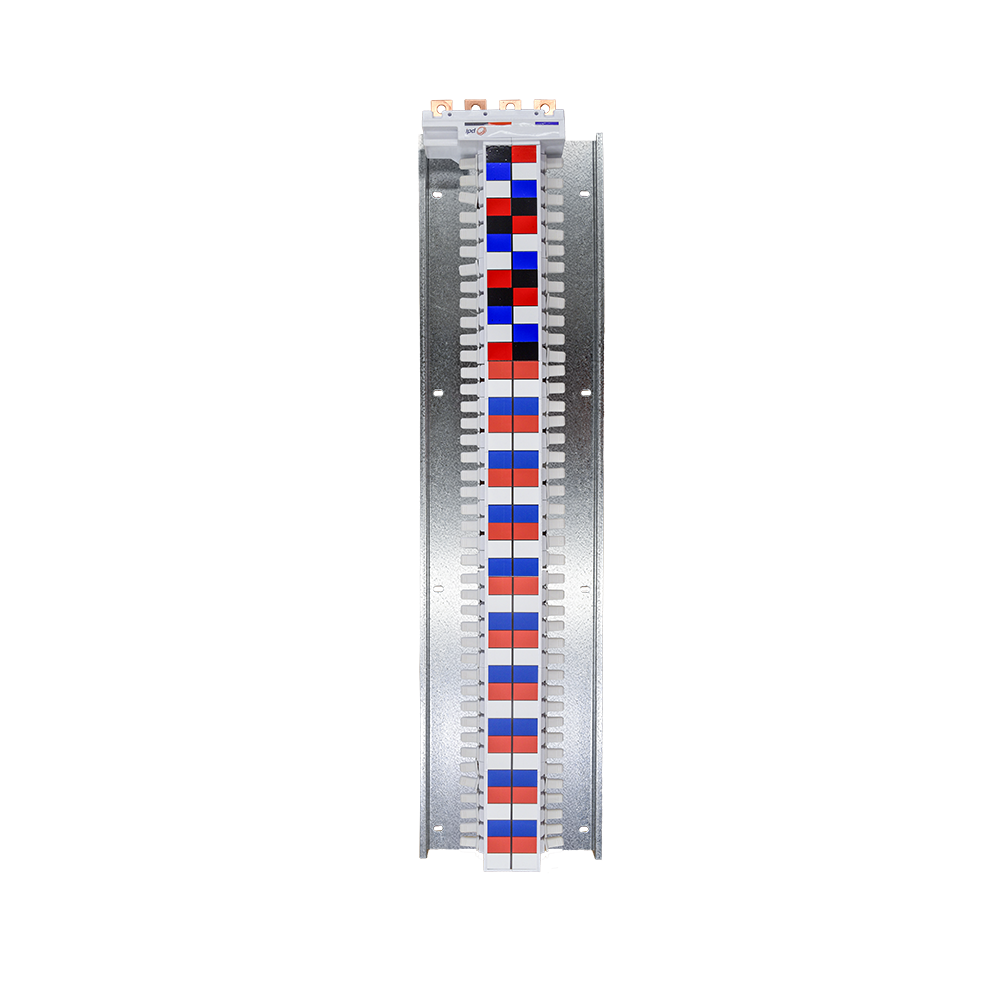

IPD IT43R24/60A25T ENCAP. CHASSIS 24P RWBN+60P RWB 250A

The Encapsulated Chassis 84P is designed for use with S200 breakers in the IA range. It features a total of 84 poles, with 24 poles in the RWBN configuration and 60 poles in the RWB configuration. The chassis has a top feed and can withstand a rating of 250A. It has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 2mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV for added durability and protection.
