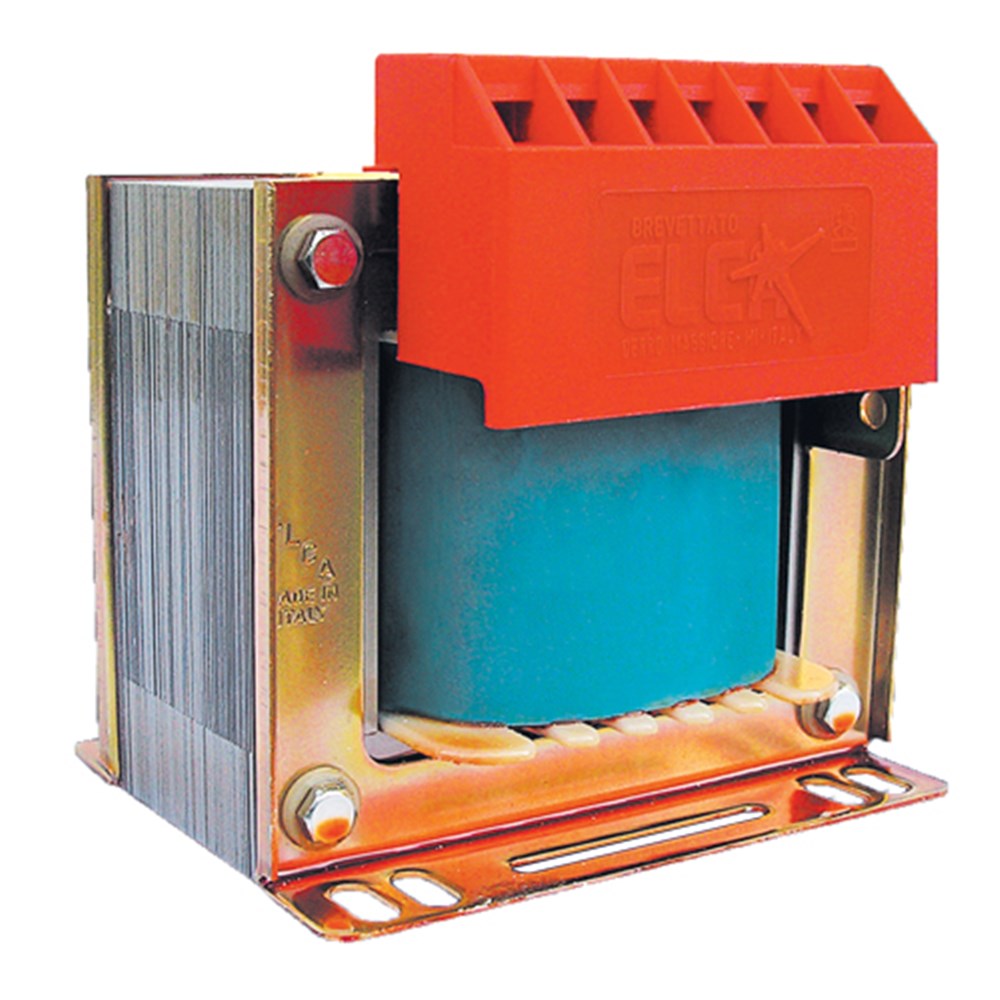

ELCA TM180 800VA TRANSFORMER 230VAC INPUT / 24VAC OUTPUT

Product Code: TM180

The Control Transformer is rated at 800VA and has an input voltage of 240VAC. It provides an output voltage of 24VAC. The transformer has dimensions of 150 x 155 x 125mm (H x W x D). It is classified as Insulation Class B and is an open type transformer with an IP00 rating. The maximum ambient temperature for this transformer is 40°C.

Technical Specifications

Brand ELCA
Class of Insulation Class B
Dimensions (mm) 150H x 155W x 125D
Input Voltage AC (V) 240
Maximum Ambient Temperature (°C) 40
Output Voltage AC (V) 24
Power (VA) 800
Rated Frequency (Hz) 50/60

Documents
