CT Output Voltage (mV)	330
Over Current Withstand Level	1.2 x rated current
Brand	SELEC
Accuracy Class	Class 1 to IEC/ EN60044-8 & IEC/EN61869-2
Frequency Range (Hz)	47 to 63
Relative Humidity	≤ 85% non-condensing
Aperture (mm)	54/50
Current Rating (A)	800
Degree of Protection	IP40 (Housing) , IP20 (Terminal)
Housing Material	Self - extinguishing polycarbonate
Operational Temperature Range (°C)	-25 to 40
Rated Thermal Current - Ith (A)	<60 In / 1 second
Storage Temperature Range (°C)	-40 to 85

Current Transformers

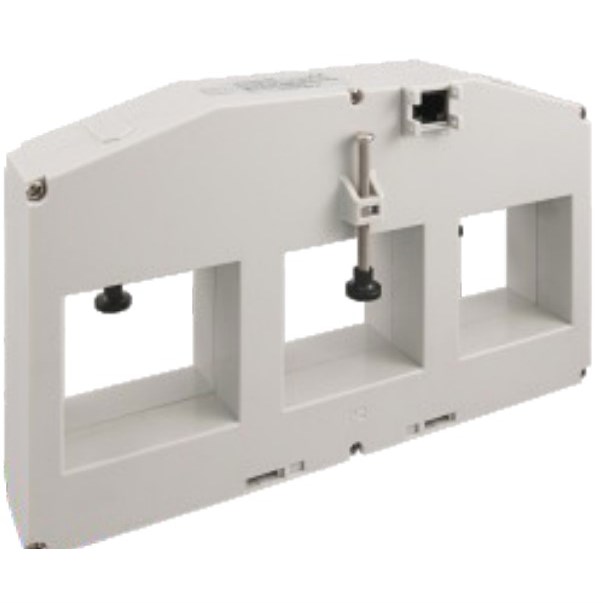

SELEC CT 3-IN-1 PLUG-N-WIRE 800A 54X50MM WINDOWS RJ45 CONNECTOR 330MV OUTPUT PWCT-54/50-800A
