Product Code: HG3G-8JT22TF-B

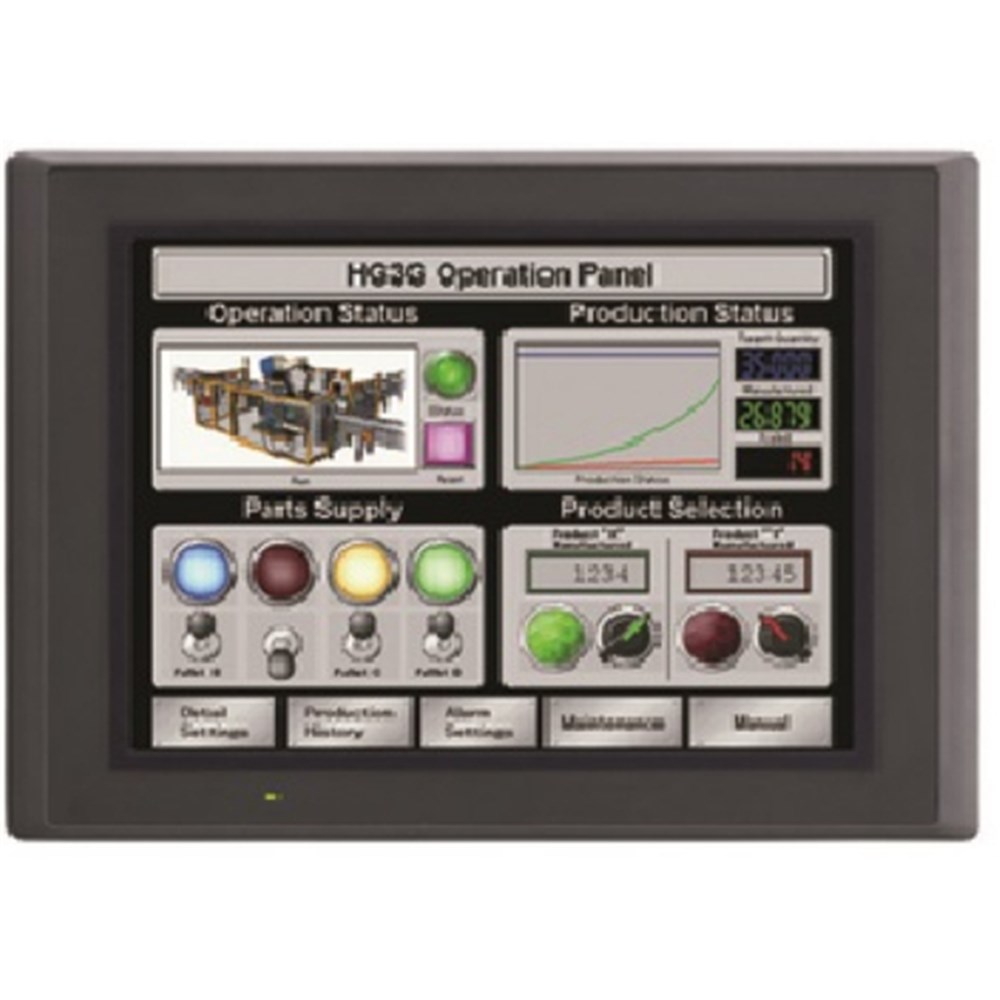

The IDEC HG3G-8JT22TF-B is an 8.4" touch screen display designed for industrial applications, featuring a 65K color TFT and SVGA resolution of 800 x 600 pixels. Its high brightness level of 600cd/m2 ensures clear visibility. The unit can be mounted in both portrait and landscape orientations to suit various user preferences and supports remote access for monitoring and control. It accommodates two expansion I/O modules and includes serial, Ethernet, and USB ports for versatile connectivity options.

Display Screen Size (mm)	170.4W × 127.8H
Resistance to Shock (m/s²)	147
Resistance to Vibrations	5-9Hz
Screen Resolution	800W × 600H
Viewing Angle	Right and left 80°, Up 80°,Down 60°
Voltage Range (DC)	20.4-28.8
Brand	IDEC
Display Screen Size (Inch)	8.4
Degree of Protection	IP66
Dimensions (mm)	231W × 176H × 54.4D
Display Screen Type	TFT Color LCD
Housing Colour	Dark Gray
Minimum Mechanical Life	1000000
Operating Humidity	10 to 90%
Operational Temperature Range (°C)	0 to 50
Power Consumption (W)	25
Rated Operational Voltage (V)	24
Weight (g)	1247.4

HMI Panels

IDEC 8.4" TOUCH SCREEN 65K COLOUR TFT, 24V DC COMMS/USB/LAN/AUDIO OUT HG3G-8JT22TF-B

Product Code: HG3G-8JT22TF-B

Technical Specifications
