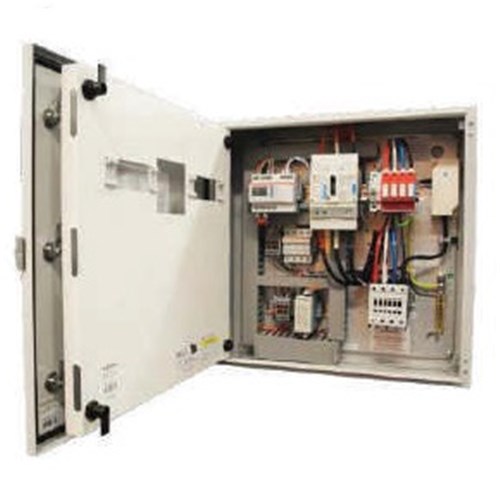

ABB PVAGPS4P69 GRID PRO. CUBICLE ASSEMBLIES IP65 100A

Product Code: PVAGPS4P69

Grid protection cubicle with a 69kVA capacity and 100A AC1 rating. It operates at 230/400VAC. The enclosure is made of modular powder coated milsteel and has an IP65 rating. The dimensions of the enclosure are 600Wx1200Hx300D mm. It is equipped with top and bottom cable glands for easy installation. Additionally, it features surge protection and has a one-hour battery backup for uninterrupted operation.

Technical Specifications

Brand ABB
Colour Grey
Degree of Protection IP65
Dimensions (mm) 600H x 600W x 200D
Material Powder Coated Mild Steel
Maximum Current AC-1 (A) 100
Maximum Power (kVA) 69
Rated Voltage AC (V) 230/400
Surge Protection Yes
