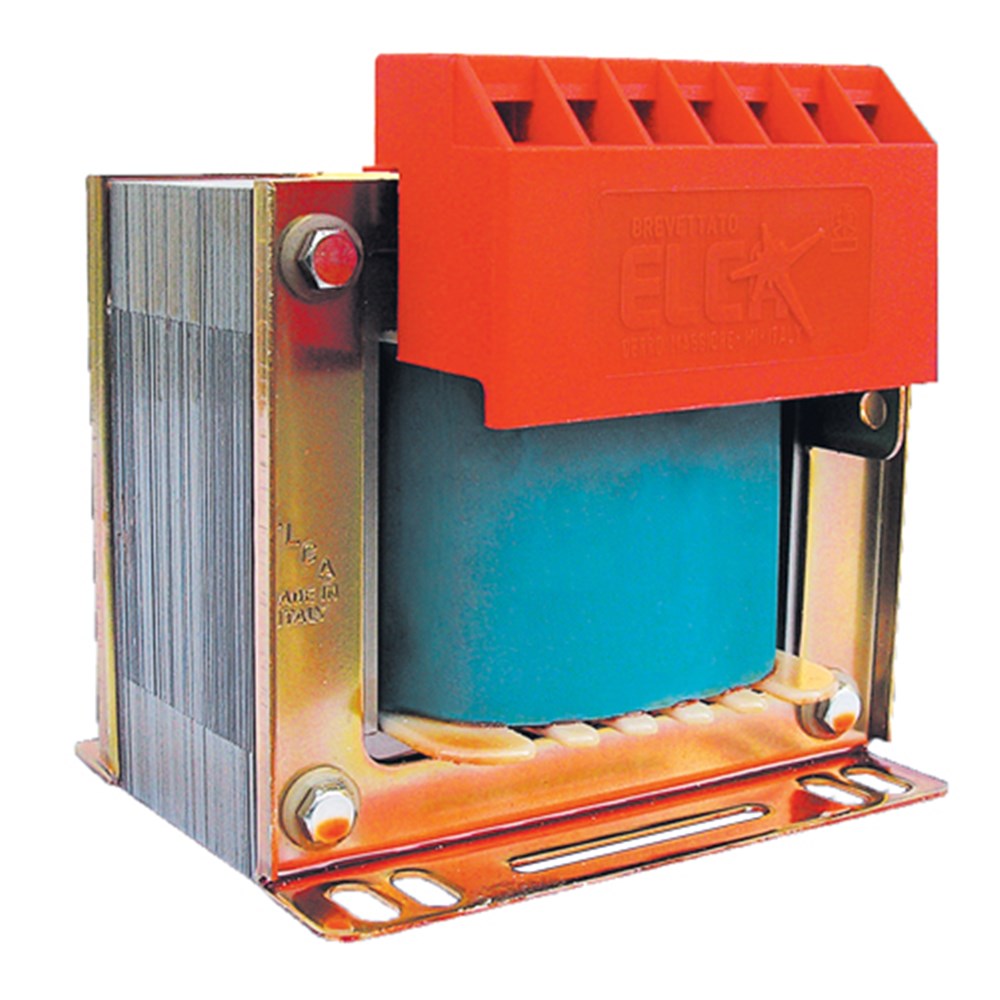

ELCA TM163 630VA TRANSFORMER 230VAC INPUT / 24VAC OUTPUT

Product Code: TM163

The Control Transformer is rated at 630VA and has an input voltage of 240VAC and an output voltage of 24VAC. It has dimensions of 120 x 122 x 135mm (H x W x D). The transformer is classified as Insulation Class B and is of the open type, with an IP00 rating. It can operate in a maximum ambient temperature of 40°C.

Technical Specifications

Brand ELCA
Class of Insulation Class B
Dimensions (mm) 120H x 122W x 135D
Input Voltage AC (V) 240
Maximum Ambient Temperature (°C) 40
Output Voltage AC (V) 24
Power (VA) 630
Rated Frequency (Hz) 50/60

Documents
