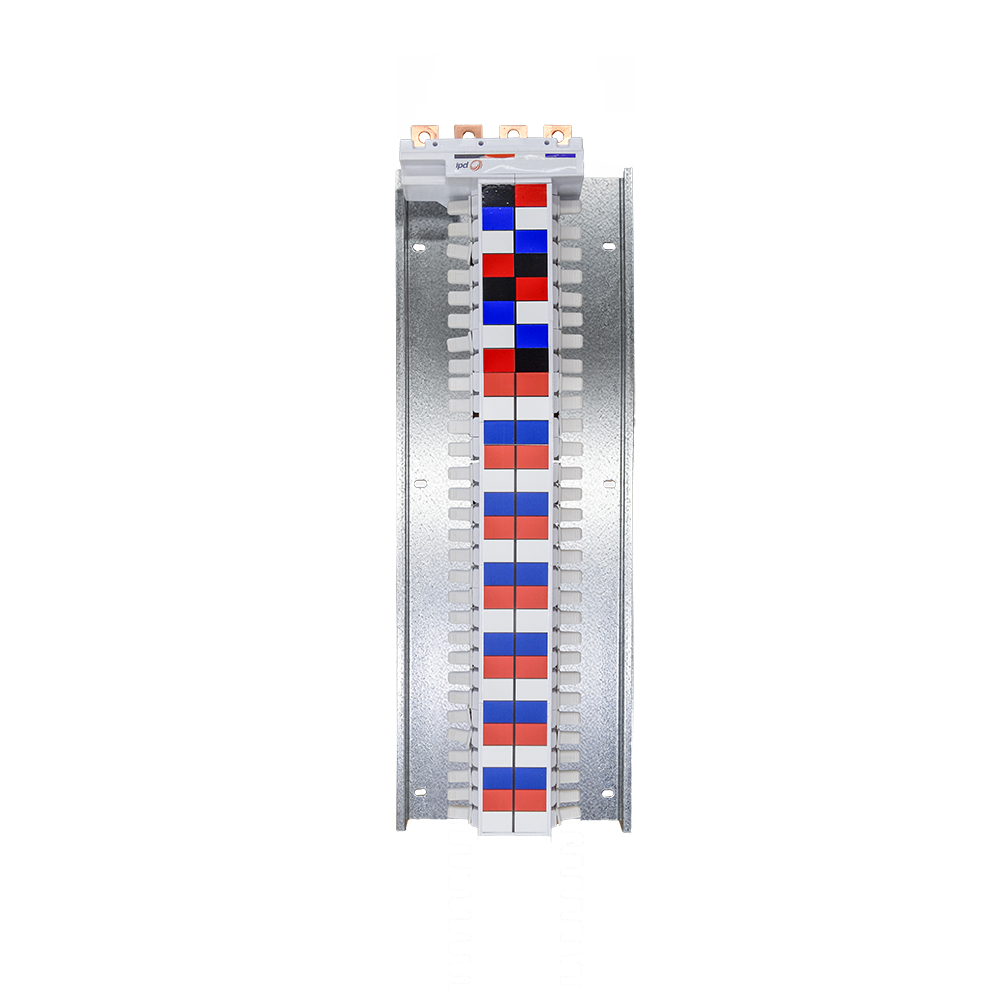

IPD IT43R16/44A25T ENCAP. CHASSIS 16P RWBN+44P RWB 250A

The Encapsulated Chassis 60P is designed with a top feed and has a withstand rating of 250A. It features a combination of 16P RWBN and 44P RWB configurations. The chassis is equipped with 2mm thick copper incoming terminals and a 1.2mm thick galvanized iron base. It also has a duravin SCI-TV coating, making it suitable for S200 breakers in the IA range IPD. In terms of performance, it can withstand Icw ratings of 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA.
