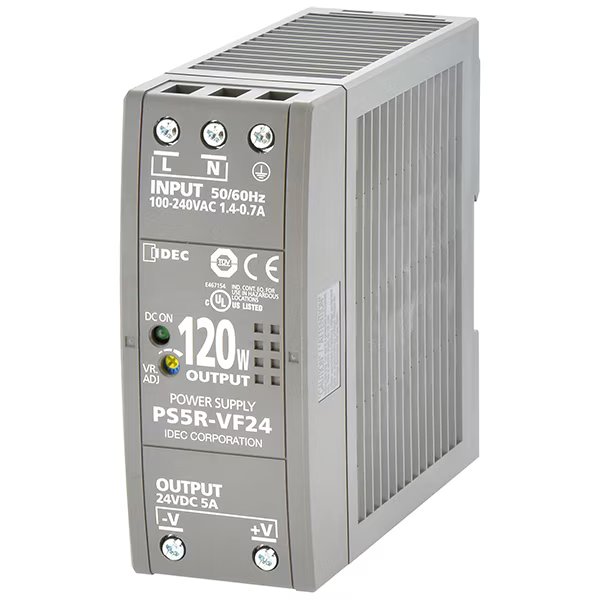

IDEC DC POWER SUPPLY, 5A, RAIL MOUNT, SLIM-LINE INPUT 85-264V AC / 100-350V DC PS5R-VF24

Product Code: PS5R-VF24

The IDEC PS5R-VF24 is a slim-line DC power supply designed for rail mounting, delivering a 24V output at 120W and 5A. It accommodates a wide input voltage range from 85-264V AC to 100-370V DC, ensuring compatibility with various devices and power systems. Its efficient power delivery guarantees stable performance, while the compact design allows for space-efficient installation. The unit's long-term reliability is assured with a 5-year warranty.

Technical Specifications

Efficiency 89%
Input Current (A) 100V AC: 1.4A 230V AC: 0.7A
Output Power (W) 120
Overcurrent Protection 105%
Resistance to Shock (m/s²) 300
Resistance to Vibrations 10 to 55Hz
Brand IDEC
Degree of Protection IP20
Dimensions (mm) 46W x 115H x 121D
Input Voltage AC (V) 100 - 240
Minimum Electrical Life 8 Years
Mounting Type DIN Rail
Operating Humidity 20 to 90%
Operational Temperature Range (°C) -25 to 65
Output Current (A) 5
Output Voltage DC (V) 24
Rated Frequency (Hz) 50/60
Warranty Period (Months) 60
Weight (g) 470
