Standard Feed Through Terminal Blocks

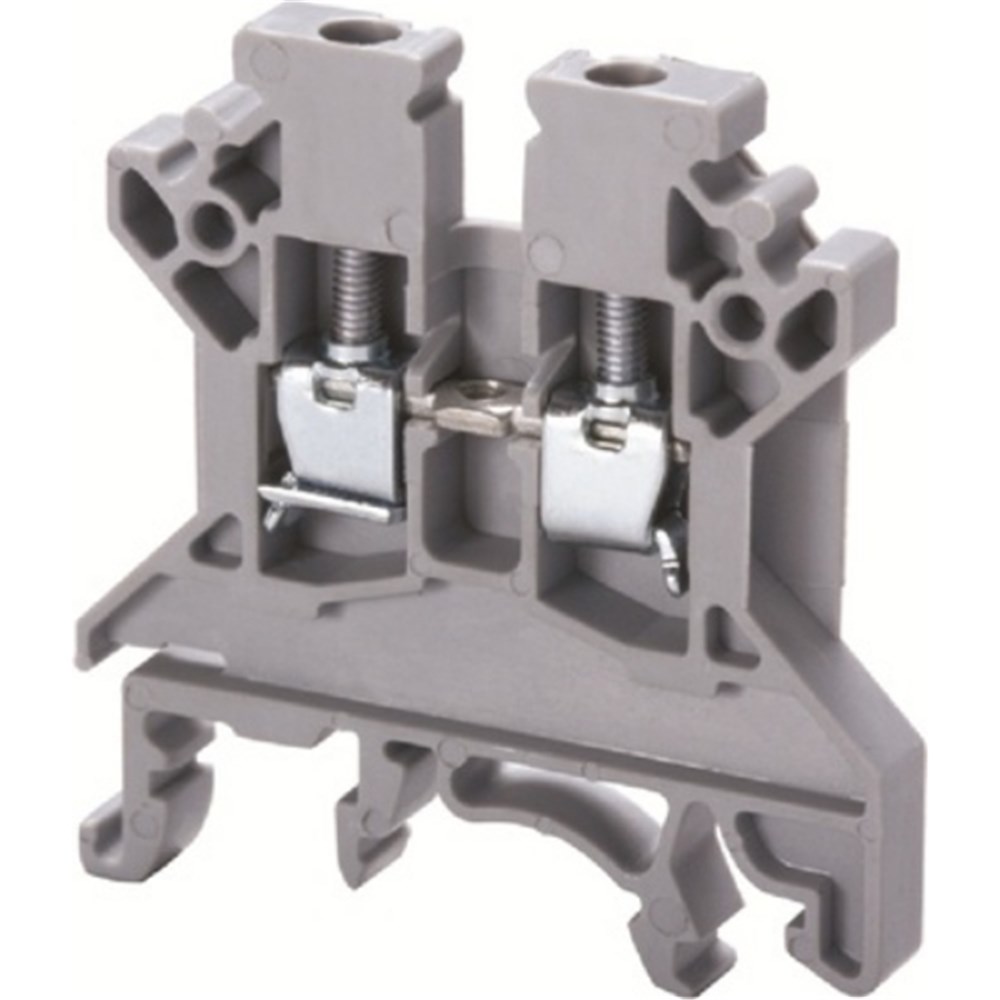

CONNECTWELL CTS4UN STANDARD FEED THROUGH SCREW CLAMP TERMINAL BLOCK 0.2-4mm² 1000 V/32A

Product Code: CTS4UN

The Standard Feed Through Screw Clamp Terminal Block is designed for use with stranded conductors ranging from 0.2mm² to 4mm². It has dimensions of 43mm in length, 6mm in width, and 46.2mm in height. The terminal block is coloured grey and has a voltage rating of 1000V and a current rating of 32A. It can be mounted on DIN 32, DIN 35, and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Colour Grey
Conductor Cross Section - Stranded (mm²) 0.2 - 4
Dimensions (mm) 43L x 6 W x 46.2H
Mounting Type DIN Rail
Rated Current (A) 32
Rated Voltage (V) 1000
Screw Size M3
Tightening Torque (Nm) 0.5

Documents
