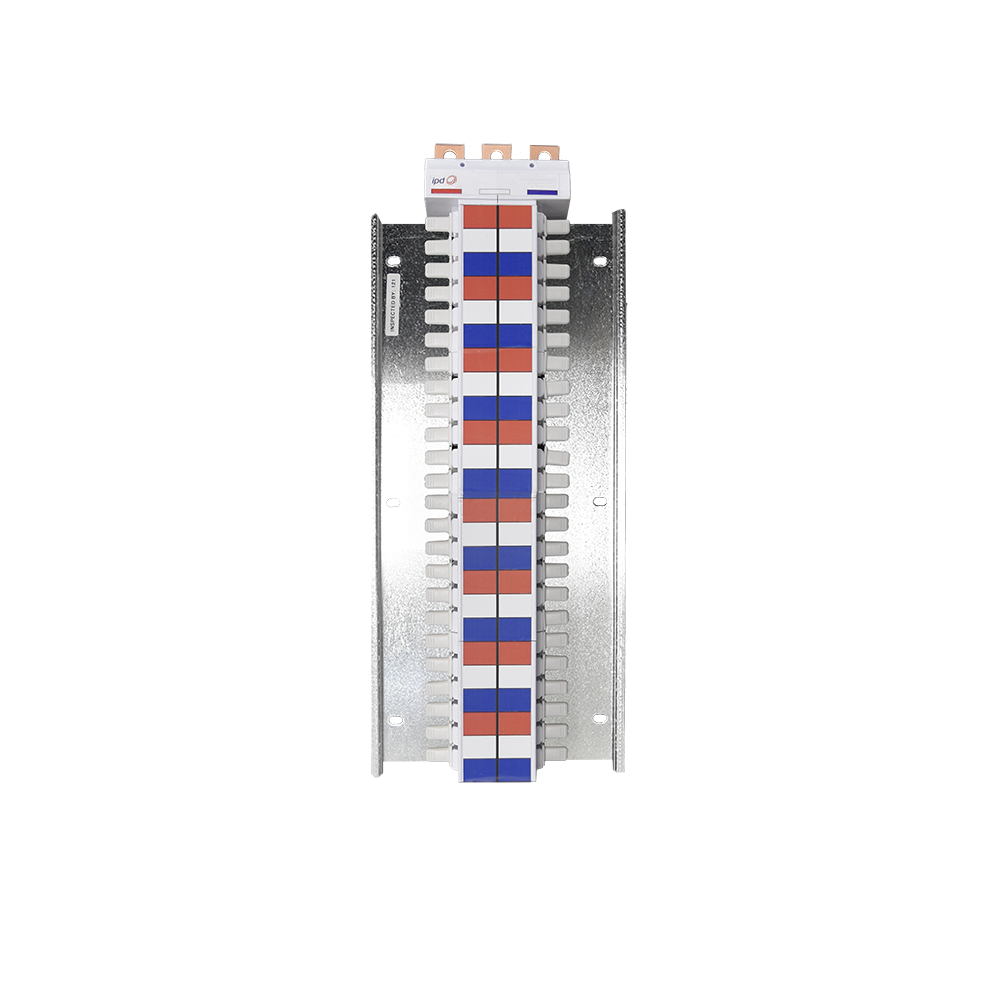

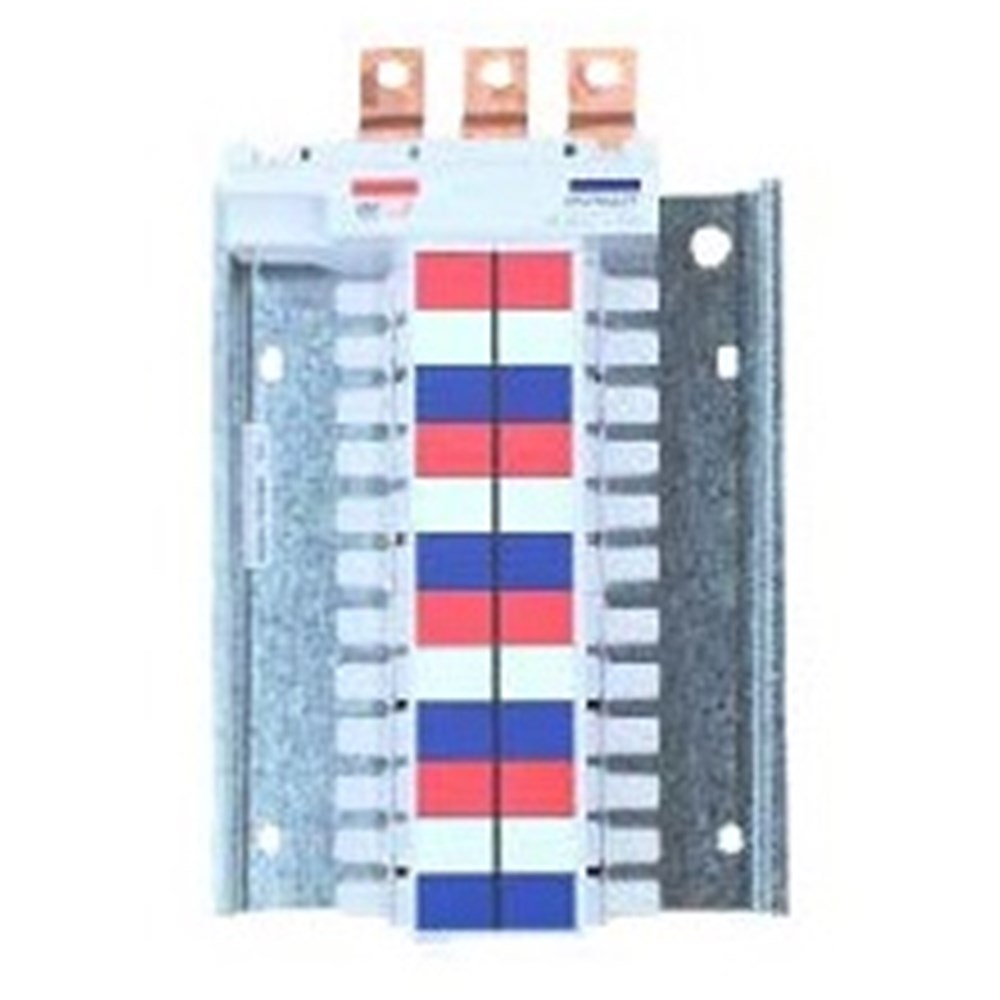

IPD IT48A25T ENCAPSUL. CHASSIS 48P 250A TOP FD 18mm PITCH

The Encapsulated Chassis is designed with a 48P configuration and can handle up to 250A of current. It features a top feed design with an 18mm pitch. The chassis has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 2mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV, making it suitable for S200 breakers in the IA range IPD.
