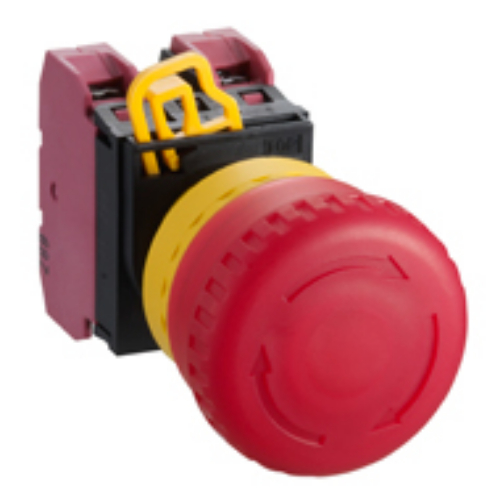

IDEC YW1L-V4E01Q4R ILLUMINATED MUSHROOM EMERGENCY STOP PUSHBUTTON Ã 40MM 1NC 24VAC/DC

Product Code: YW1L-V4E01Q4R

The IDEC YW1L-V4E01Q4R is an illuminated mushroom emergency-stop pushbutton designed for safety and visibility. It features a 40mm diameter LED, suitable for 24V AC/DC power systems, and includes a 1NC contact configuration. The pushbutton provides pushlock and pull/turn reset mechanisms for efficient operation in emergency situations.

Technical Specifications

Brand IDEC
Contact Material Silver
Contacts 1NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Degree of Protection IP65 (Front), IP20 (Terminals)
Illumination Illuminated
Insulation Resistance (MO) 100
LED Colour Red
Mode of Operation Pushlock, Pull/Turn Reset
Mounting Hole Diameter (mm) 22
Mushroom Diameter (mm) 40
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Rated Voltage AC/DC (V) 24
Series YW
Terminal Type Screw (M3.5)
