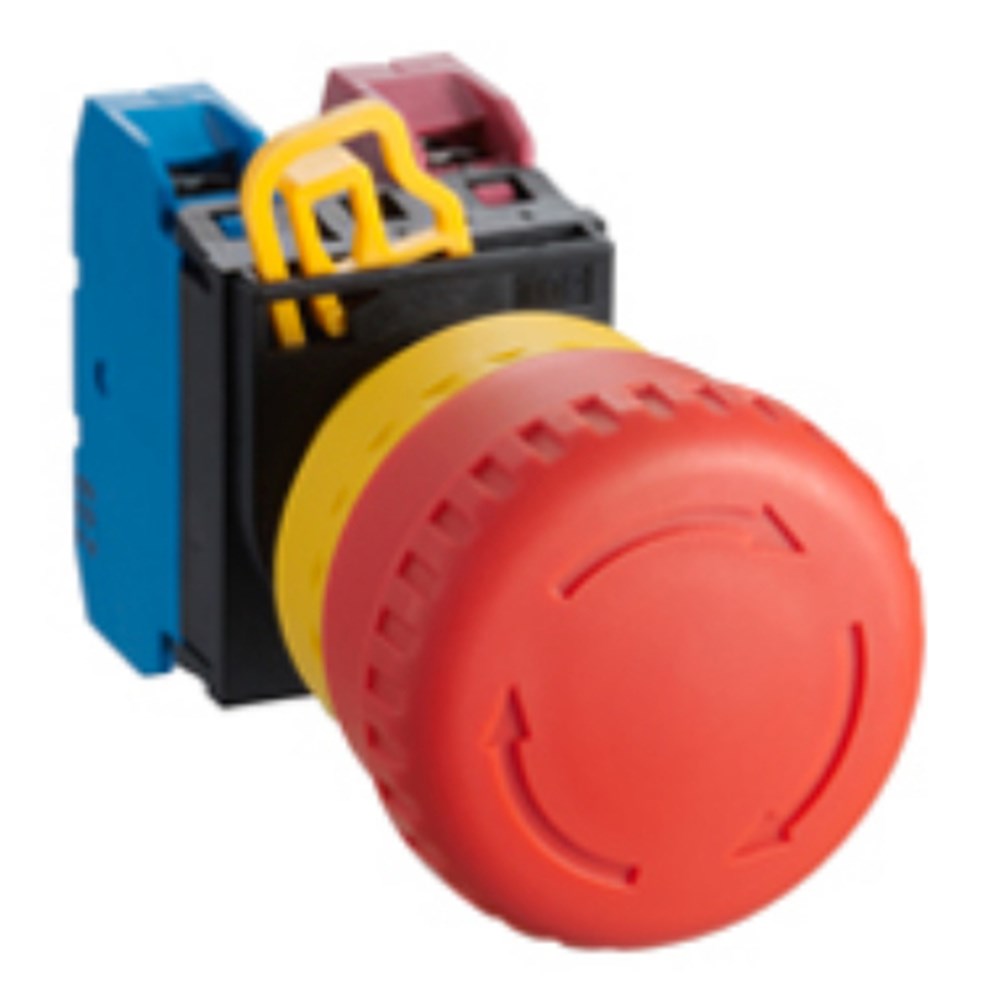

IDEC YW1B-V4E01R NON-ILLUMINATED MUSHROOM EMERGENCY STOP PUSHBUTTON Ã 40MM 1NC

Product Code: YW1B-V4E01R

The IDEC YW1B-V4E01R is a robust Non-Illuminated Mushroom Emergency-Stop Pushbutton, featuring a pushlock actuation with a pull/turn reset mechanism. It includes 1 normally closed contact and is sized at 40mm in diameter for conspicuous and accessible emergency stopping. This pushbutton is specifically engineered for critical emergency stop applications, ensuring safety and reliability in industrial settings.

Technical Specifications

Brand IDEC
Colour Red
Contact Material Silver
Contacts 1NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Degree of Protection IP65 (Front), IP20 (Terminals)
Illumination Non-Illuminated
Insulation Resistance (MO) 100
Mode of Operation Pushlock, Pull/Turn Reset
Mounting Hole Diameter (mm) 22
Mushroom Diameter (mm) 40
Operational Temperature Range (°C) -20 to +55
Rated Frequency (Hz) 50/60
Rated Insulation Voltage (V) Contact Rating - 600
Series YW
Terminal Type Screw (M3.5)
