IDEC 40mm E STOP XW 22mm SERIES 24V AC/DC LED ILLUMINATED, 4NC XW1E-LV404Q4M-R

Product Code: XW1E-LV404Q4M-R

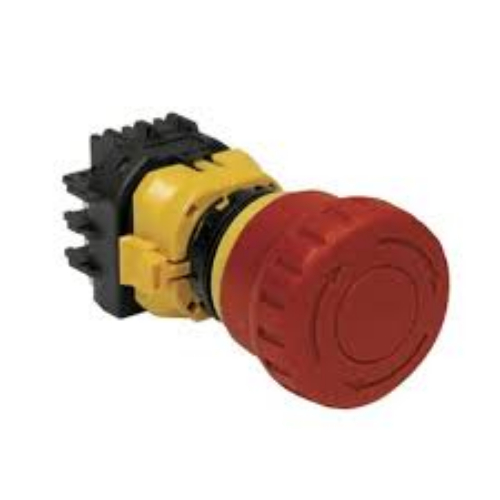

The IDEC XW1E-LV404Q4M-R is a robust 40mm Emergency-Stop Pushbutton designed for critical safety applications. This red, mushroom-style button features an LED indicator and a 4NC contact configuration with a pushlock activation mechanism. It allows for reset by pulling or turning and operates on 24V AC/DC power. With an IP65 rating, the pushbutton ensures protection against dust and water ingress, suitable for demanding industrial environments.

Technical Specifications

Brand IDEC
Contact Material Gold Plated Silver
Contacts 4NC
Conventional Free-Air Thermal Current - Ith (A) Contact Rating - 10
Degree of Protection IP65 (Front), IP20 (Terminals)
Illumination Illuminated
Insulation Resistance (MO) 100
LED Colour Red
Mode of Operation Pushlock Turn/Reset
Mounting Hole Diameter (mm) 22
Mushroom Diameter (mm) 40
Operational Temperature Range (°C) -25 to +55
Pollution Degree 3
Rated Current (mA) 15
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 2.5
Rated Insulation Voltage (V) 300
Rated Voltage AC/DC (V) 24
Series XW
Terminal Type Screw (M3.5)
Tightening Torque (Nm) Locking Ring - 2.0 Terminal Screw 0.6 - 1.0
