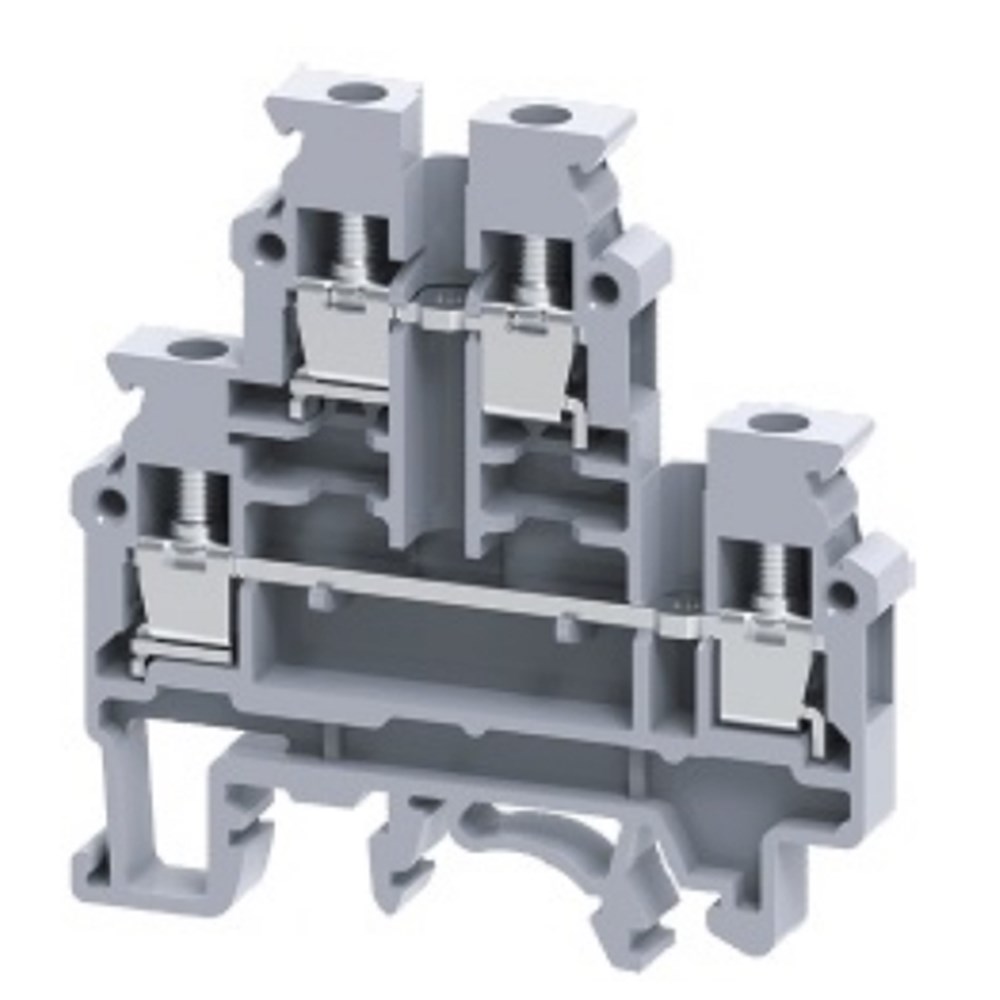

CONNECTWELL CDL4UN DOUBLE LEVEL TERMINAL BLOCK SCREW CLAMP 0.2-4.0mm²

The double level terminal block is designed with a screw clamp for secure connections. It can accommodate stranded conductors with a cross section ranging from 0.2mm² to 4.0mm². The dimensions of the terminal block are 57mm in length, 6mm in width, and 59.5mm in height. It comes in a grey colour. This terminal block has a voltage rating of 800V and a current rating of 32A. It features feed through connections on both the top and bottom levels, allowing for easy wiring. The terminal block can be mounted on DIN 32, DIN 35, and DIN 35-15 rails, providing flexibility in installation options.
