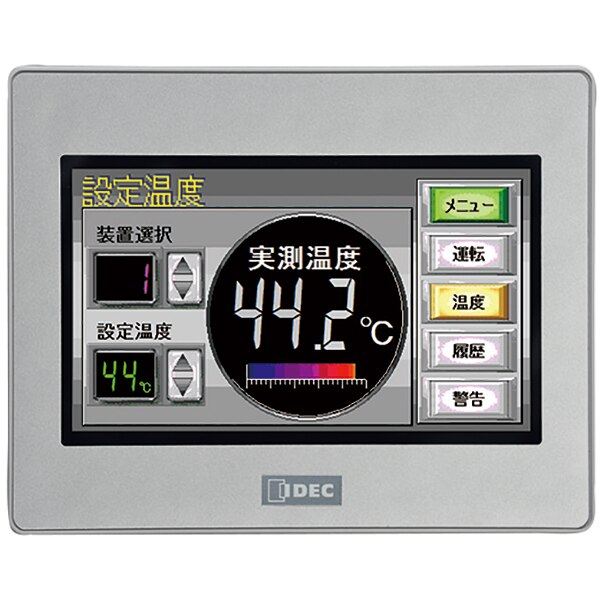

IDEC 4.3 TOUCH SCREEN TFT 65K (SILVER BEZEL) SMALL PROGRAMINGDISPLAY HG1G-4VT22TF-S

Product Code: HG1G-4VT22TF-S

The IDEC HG1G-4VT22TF-S is a compact 4.3-inch touch screen TFT display with a high-resolution of 480 x 272 pixels, ensuring clear and sharp visuals. Its super bright screen offers excellent visibility with 800 cd/m2 brightness. This versatile display supports up to four protocols simultaneously for efficient communication and integration. It also features remote internet access capabilities, allowing for monitoring and control from distant locations, as well as an FTP server function for convenient file transfers.

Technical Specifications

Display Screen Size (mm) 95.0 W × 53.8 H
Resistance to Shock (m/s²) 147
Resistance to Vibrations 5-8.4Hz
Screen Resolution 480W × 272H
Viewing Angle Left/Right: 70°, Top: 60°, Bottom: 65°
Voltage Range (DC) 10.2-28.8
Brand IDEC
Colour Silver
Dimensions (mm) 128W x 102H x 31.8D
Display Screen Type TFT color LCD
Minimum Electrical Life 1000000
Operating Humidity 10 to 90%
Operational Temperature Range (°C) -20 to 55
Power Consumption (W) 8
Warranty Period (Months) 36
Weight (g) 300
