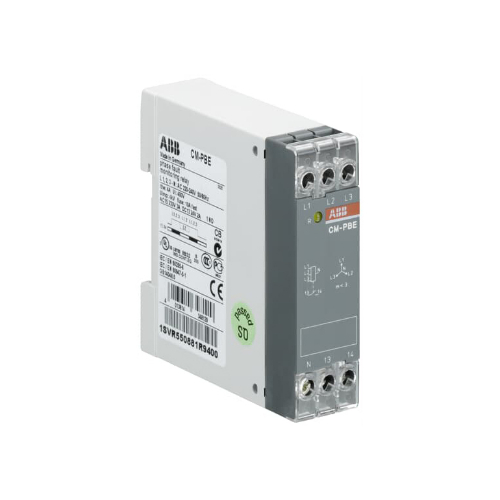

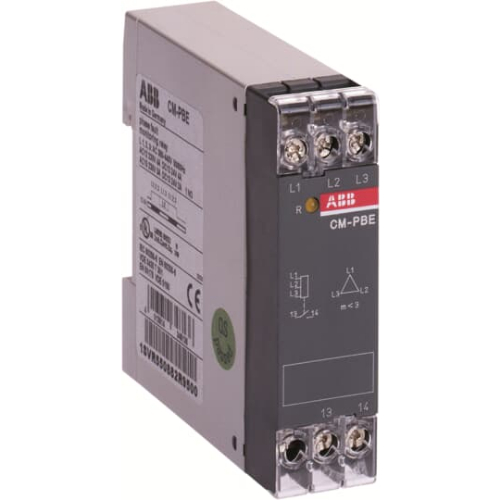

ABB CM-PBE.N 1/3-PHASE MONITORING RELAY 1NO 10A 380-480VAC

Product Code: CM-PBE.N

Multifunctional Single/Three phase monitoring relay Monitor Phase loss & undervolatge L1,L2,L3=380-440VAC L-N=220-240VAC, 380..440VAC (L-L), 220-240V AC(L-N) Measuring range, Start-up delay: 500ms Tripping delay: 150ms Time range, 1 N/O contact, 380..440VAC (L-L) L-N Control supply voltage 1 Width 22.5mm modules

Technical Specifications

Brand ABB
Contacts 1NO
Degree of Protection IP50 (Housing), IP20 (Terminals)
Duty Time 100%
LED Colour F: Red, R: Yellow
Measuring Range AC (V) 3 x 380-440, 220-240
Mounting Type DIN Rail
No. of Phases 1/3
Operational Temperature Range (°C) -20 to +60
Pollution Degree 3
Rated Control Supply Voltage AC (V) 3 x 380-440, 220-240
Rated Frequency (Hz) 50/60
Rated Impulse Withstand Voltage (kV) 4
Timing Range Start-up delay: 500ms, Tripping delay: 150ms
