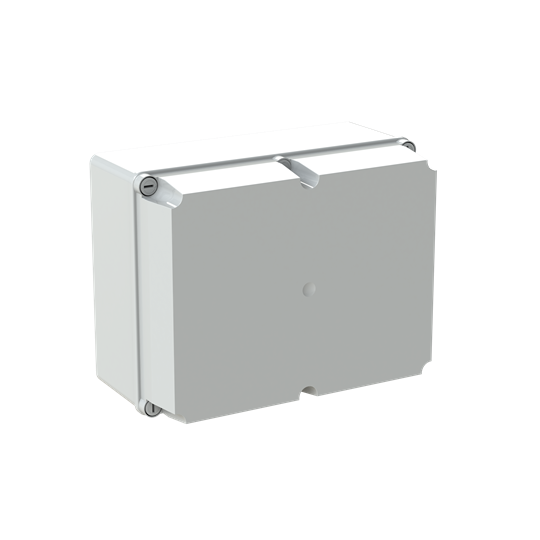

ABB LE00864 Plastic Enclosure Rectangular Plastic Grey 310W 240H 160D Opaque Door

Product Code: LE00864

  • IP65 protection for dust and water resistance
  • Durable plastic construction, grey colour
  • Wide operating temp: -25 to 75°C
  • Secure screwed opaque door with 1/4 turn screws
  • Halogen-free for safer use
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Plastic Enclosure
Brand ABB
Ambient Temperature -25 deg C
Colour Grey
Cover Attachment Screwed
Cover Colour Opaque
Cover Style Blind Cover
Degree of Protection IP65
Depth 160 mm
Door Type Opaque Door
Finish Untreated
Halogen Free Yes
Height 240 mm
Lid Screw Type 1/4 Turn Plastic
Material Plastic
Operational Temperature -25 to 75 deg C
Rated Insulation Voltage 1500 V
Sealable Yes
Shape Rectangular
Weight 1.31 kg
Width 310 mm

Description

<p>When selecting an enclosure for industrial or commercial applications, the right choice can significantly impact both functionality and safety. This thermoplastic enclosure, designed with precision and practicality in mind, offers a robust solution for various technical environments.</p><p>Constructed from durable plastic, this enclosure boasts an IP65 degree of protection. This means it is well-suited to withstand dust ingress and low-pressure water jets from any direction, making it ideal for harsh environments where reliability is paramount.</p><p>The dimensions are thoughtfully laid out: a width of 310 mm, height of 240 mm, and depth of 160 mm provide ample space for housing components while maintaining a compact form factor. Its grey color ensures it blends seamlessly into most industrial settings without drawing unnecessary attention.</p><p>Temperature resilience is another key feature. With an operational temperature range from -25 to 75 degrees Celsius, this enclosure can be confidently used in diverse climates across Australia. The ambient temperature also stands at -25 degrees Celsius, ensuring stability even in colder conditions.</p><p>Weighing in at just 1.31 kg, the enclosure is lightweight yet sturdy enough to protect its contents effectively. The opaque door style provides privacy and security for internal components while the blind cover design maintains a clean aesthetic free from visual distractions.</p><p>The untreated finish allows users flexibility should they wish to apply additional treatments or coatings based on specific needs or preferences. Thanks to its rectangular shape and screwed cover attachment system using 1/4 turn plastic lid screws, accessing the interior is straightforward when maintenance or modifications are needed.</p><p>Safety considerations include a rated insulation voltage of 1500 V which supports high-voltage applications safely within the enclosure&amp;#39;s confines. Additionally sealable features offer extra security measures against unauthorized access if required by your project specifications.</p><p>Importantly this product is halogen-free reducing environmental impact during disposal processes while minimizing potential health risks associated with halogenated materials particularly pertinent in sensitive installations like hospitals or schools.</p><p>In summary whether you’re managing equipment protection requirements on-site or designing new systems needing reliable enclosures this thermoplastic option delivers essential attributes combining durability versatility ease-of-use all wrapped up neatly within stringent safety standards suited perfectly towards meeting Australian industry expectations without compromise on quality performance longevity alike all encapsulated under one roof literally speaking!</p>
