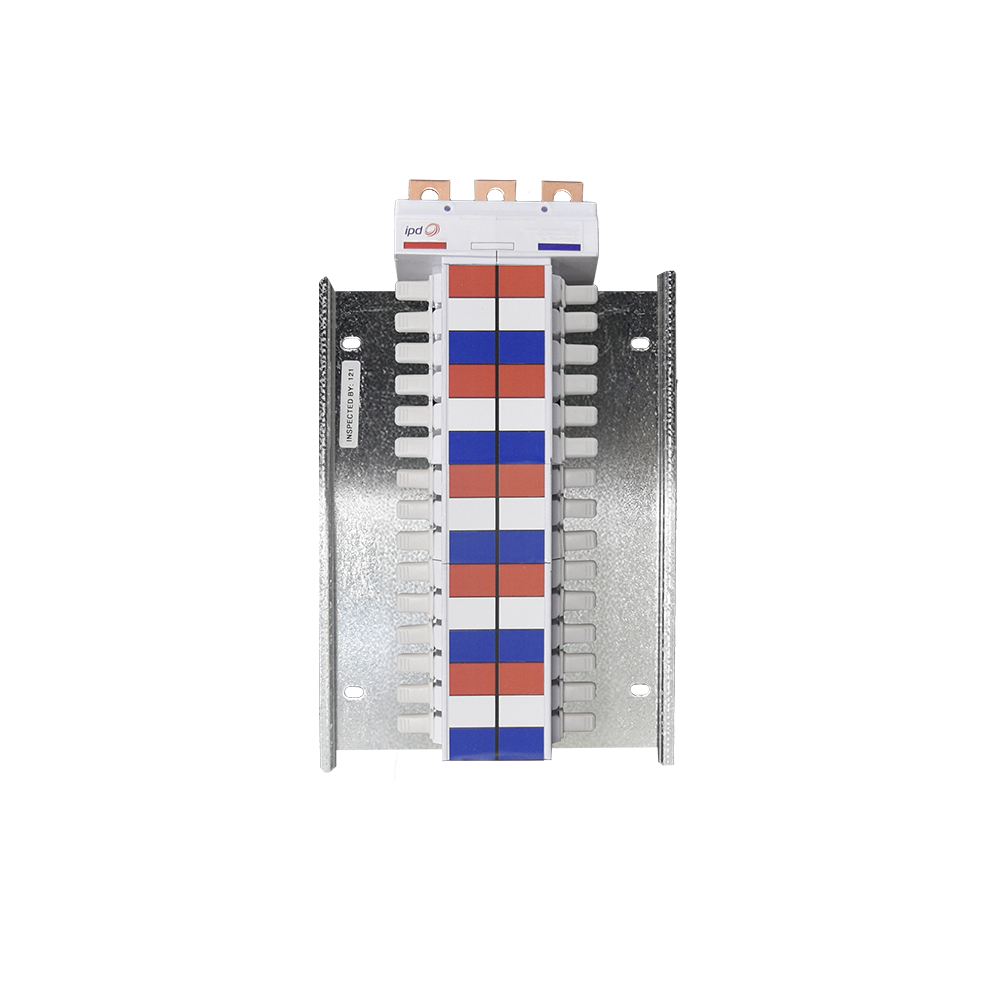

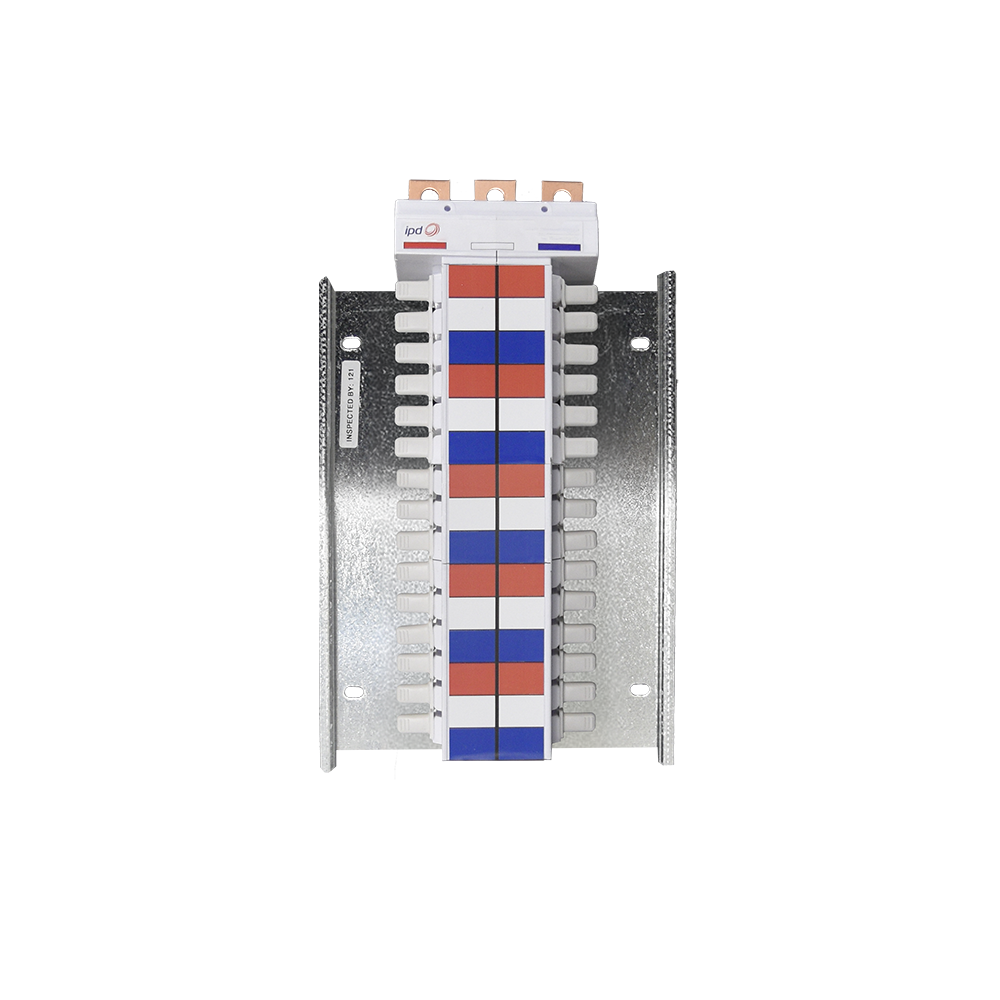

IPD IT30A40T ENCAPSUL. CHASSIS 30P 400A TOP FD 18mm PITCH

The Encapsulated Chassis is designed for S200 breakers in the IA range. It has a 30P configuration and can handle up to 400A of current. The chassis features top feed with an 18mm pitch. It has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 3mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV for added durability and protection.
