Brand	DEHN
Circuit Type	MSB
Degree of Protection	IP20
Follow Current Extinguishing Capability AC (kArms)	50 (L-N)
Integral Fuse	Yes
Lightning Impulse Current (10/350 µs) - Iimp (kA)	25 (L-N)/100 (N-PE)
Maximum Continuous Operating Voltage MCOV AC (V)	255
Mounting Type	DIN Rail
No. of Modules	8
No. of Poles	4P+PE
Nominal Discharge Current (8/20µs) - In (kA)	25 (L-N)
Nominal Voltage AC (V)	230
Operating State/Fault Indication	Green/Red
Response Time (ns)	≤ 100
Signal C/O Contact	Yes
Voltage Protection Level - Up (kV)	≤ 1.5

Lightning & Surge Protection

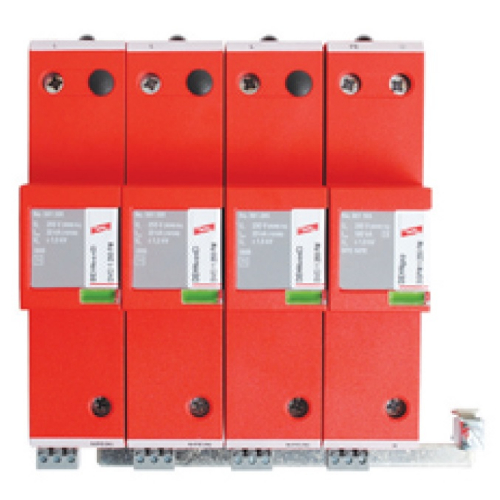

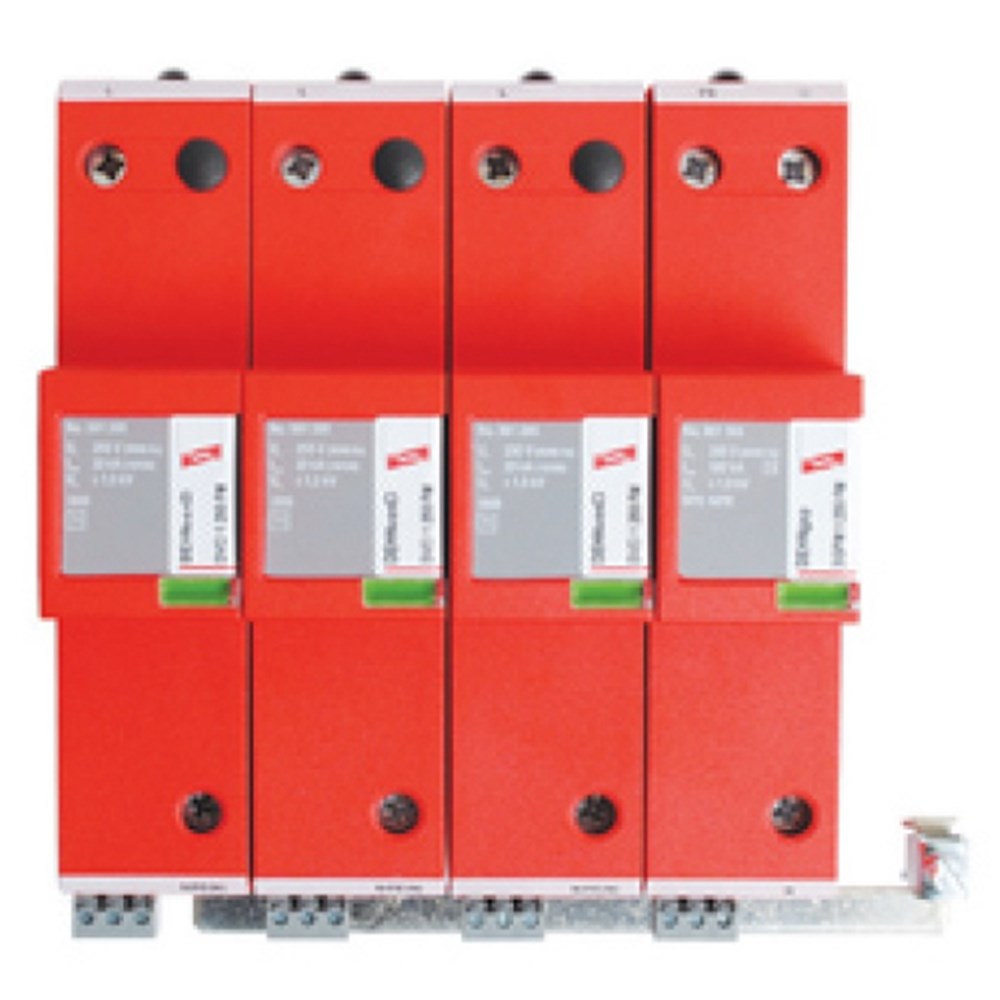

DEHN DVCI1255-TT SPD KIT T1+T2, 4P+PE In=25KA WITH C/O CONT.
