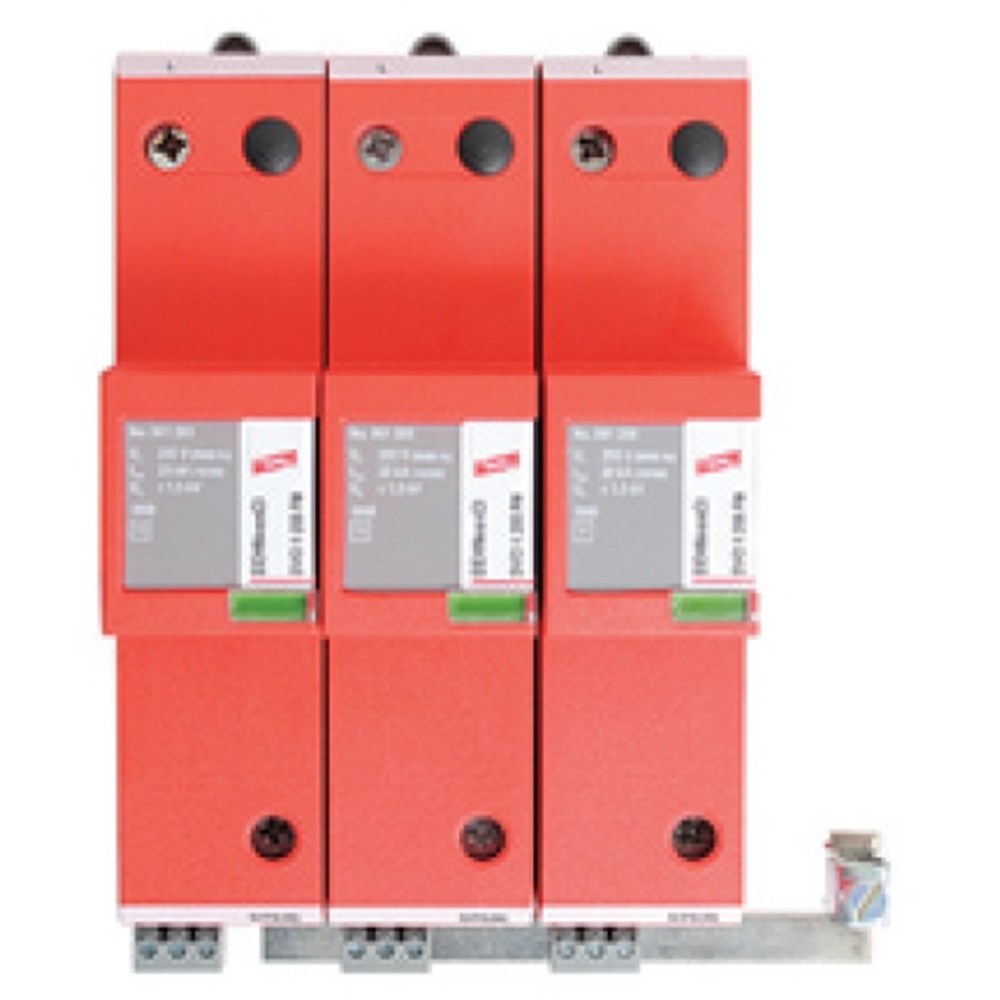

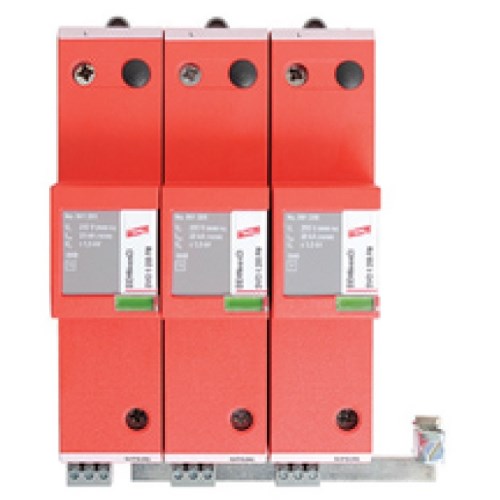

DEHN DVCI1255-TNC SPD KIT T1+T2, 3P In=25KA WITH C/O CONT.

Product Code: DVCI1255-TNC

The DEHNvenCI with MEN link SPD Kit is a comprehensive solution for surge protection. It includes 3 DVCI255FM devices and 1 EBDG100013 device. This kit is designed to provide effective protection against electrical surges, ensuring the safety and reliability of your equipment. With its advanced technology and high-quality components, the DEHNvenCI with MEN link SPD Kit is an ideal choice for engineers looking to safeguard their systems from power disturbances.

Technical Specifications

Brand DEHN
Circuit Type MSB
Degree of Protection IP20
Follow Current Extinguishing Capability AC (kArms) 50
Integral Fuse Yes
Lightning Impulse Current (10/350 µs) - Iimp (kA) 25
Maximum Continuous Operating Voltage MCOV AC (V) 255
Mounting Type DIN Rail
No. of Modules 6
No. of Poles 3P+PEN
Nominal Discharge Current (8/20µs) - In (kA) 25
Nominal Voltage AC (V) 230
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 100
Signal C/O Contact Yes
Voltage Protection Level - Up (kV) ≤ 1.5
