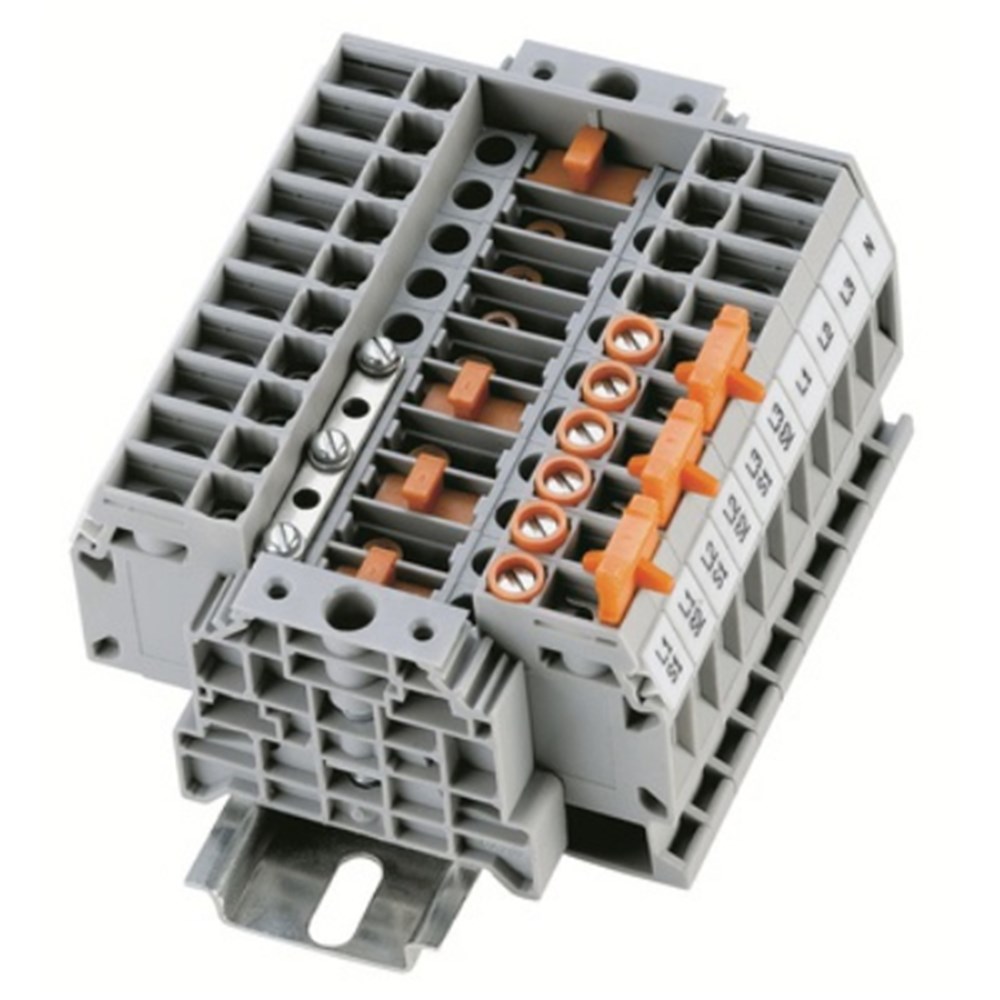

CONNECTWELL CDS6U-KIT3P 3 PH kWh METER TEST TERMINAL BLOCK SCREW CLAMP 3 CT KIT

Product Code: CDS6U-KIT3P

This 3 Phase kWh meter test terminal block features a screw clamp for easy installation. It is designed for use with stranded conductors and can accommodate a cross section of 0.2 - 6.0mm². The dimensions of the terminal block are 82mm (L) x 81.5mm (W) x 60mm (H), and it comes in a grey colour. The kit includes 3 CTs (current transformers) and a K8 size marking tag. However, please note that the kit does not include end stops (CA202) or the mounting rail.

Technical Specifications

Brand CONNECTWELL
Cable Entry Side
Colour Grey
Conductor Cross Section - Stranded (mm²) 0.2 - 6.0
Dimensions (mm) 60H x 81.5W x 82D
Housing Material Polyamide
Marking Tag K8 Size (Vertical Print)
Mode of Operation By Screwdriver
Mounting Type DIN Rail
No. of CT Connections 3
Pollution Degree 3
Rated Voltage (V) 800
Screw Size M3.5
Standards and Approvals IEC/EN60947-7-1
Surge Voltage (kV) 8
Terminal Type Sliding Type Disconnect and Test
Tightening Torque (Nm) 0.8
