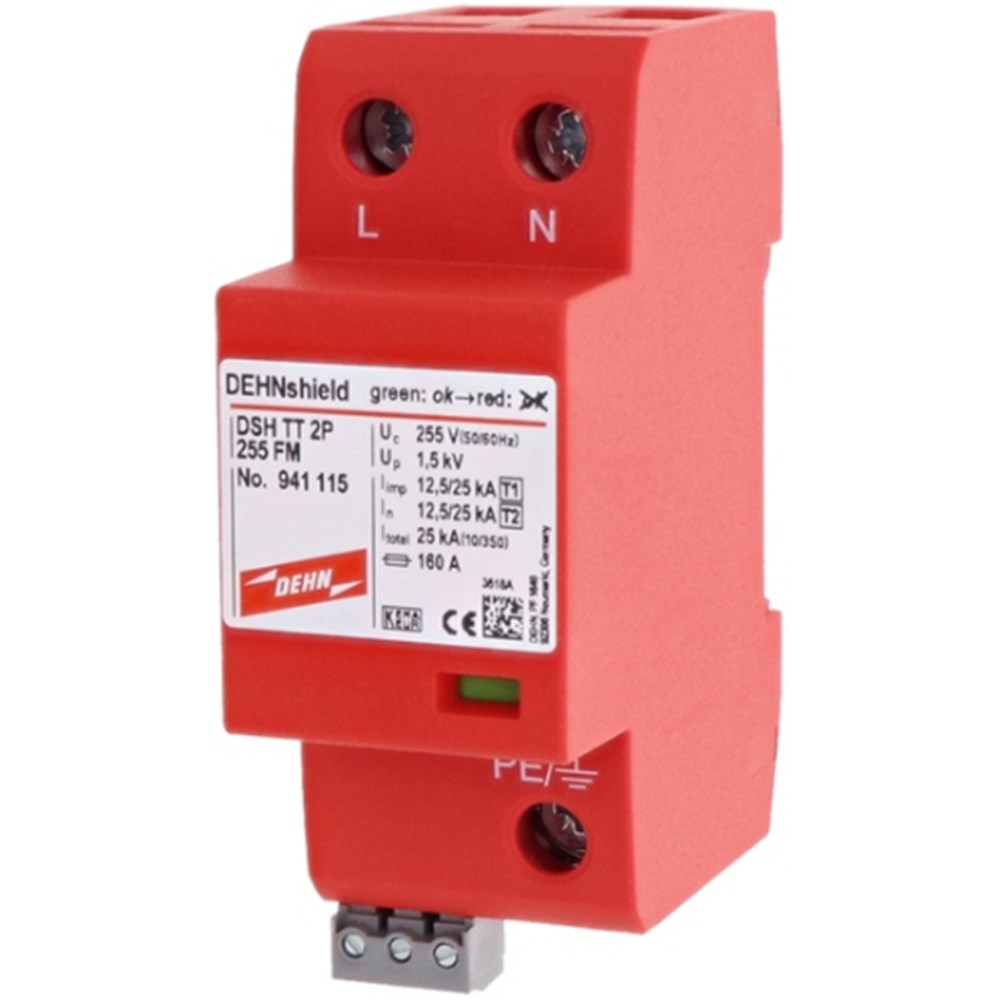

DEHN APPL.-OPT. COMBINED ARRESTER DEHNSHIELD TYPE 1+2 FOR SINGLE-PHASE TT A. TN SYSTEMS DSHTT2P255FM

Product Code: DSHTT2P255FM

Application-optimised multipole type 1 and type 2 spark-gap-based combined lightning current and surge arrester according to EN 61643-11. Compact design due to space-saving spark gap technology with a width of only 1 module / pole. For use in residential buildings and special applications. Capable of protecting terminal equipment. For protecting low-voltage consumer's installations against surges, even in case of direct lightning strikes.

Technical Specifications

Brand DEHN
Article No. 941115
Circuit Type MSB
Degree of Protection IP20
Dimensions (mm) 0.07W x 0.1L x 0.04D
Follow Current Extinguishing Capability AC (kArms) 25 (L-N)/ 100 (N-PE)
Integral Fuse No
Lightning Impulse Current (10/350 µs) - Iimp (kA) 12.5 (L-N)/25 (N-PE)
Maximum Continuous Operating Voltage MCOV AC (V) 255
Mounting Type DIN Rail
No. of Modules 2
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 12.5 (L-N)/25 (N-PE)
Nominal Voltage AC (V) 230
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 100
Signal C/O Contact Yes
Total Discharge Current (10/350 µs) - Itotal (kA) 25 (L+N-PE)
Voltage Protection Level - Up (kV) ≤ 1.5
Weight (kg) 0.3
