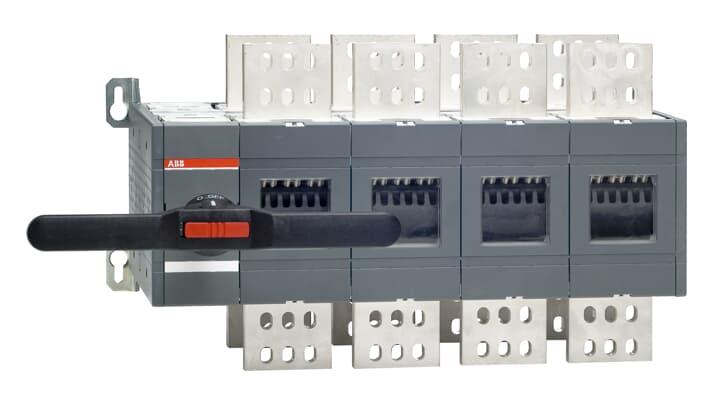

ABB OT2500E04CP CHANGE-OVER SWITCH OT2500E04CP

Product Code: OT2500E04CP

2500A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.

Technical Specifications

Control Element Colour Black
Interlockable Yes
No. of Switches 1
Padlockable Padlockable in O-position
Position of Line Terminals Top In - Bottom Out, Bottom In - Top Out
Transition Type Open
Brand ABB
Conventional Free-Air Thermal Current - Ith (A) 2500
Degree of Protection IP20
Dimensions (mm) 664W x 377H x 335D
Handle Type Pistol
Included Handle, Shaft
Indication I-O-II
Maximum Operational Voltage AC (V) 1000
Mode of Operation Front
Mounting Type Front Mount 4-hole
NEMA Degree of Protection 1
No. of Poles 4
Pollution Degree 3
Power Loss (W) 85
Rated Impulse Withstand Voltage (kV) 12
Rated Insulation Voltage (V) 1000
Rated Operational Current AC-22A 415V (A) 2500
Rated Operational Voltage (V) 1000
Rated Operational Voltage AC (V) 415
Rated Short-Time Withstand Current - Icw (kA) 55
Suitable For Distribution Board Installation
Terminal Type Bolt
Type Main Switch
Weight (kg) 86
