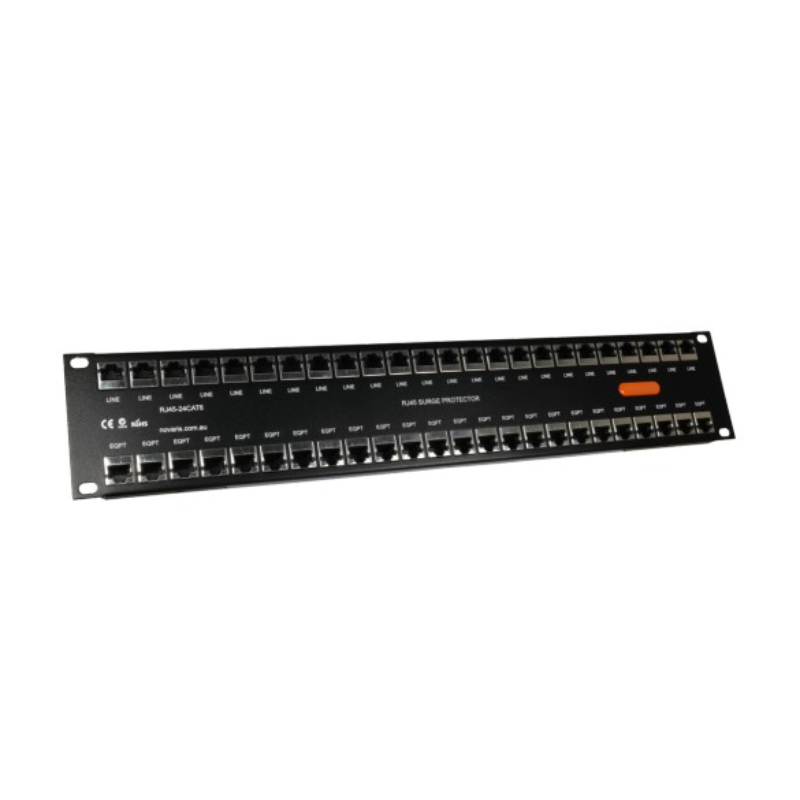

NOVARIS LAN PROTECTOR RJ45-24CAT6 FOR TWISTED PAIR CABLING RJ45-24CAT6

Product Code: RJ45-24CAT6

The RJ45 network protector is designed to protect twisted pair Ethernet systems. It has 24 RJ45 ports with 4 pairs and a shield. The maximum continuous voltage it can handle is 6 VDC and 4 VAC. It has a maximum common mode discharge current of 5kA at 8/20 ms (common mode 10kA) and a maximum discharge current of 1kA at 10/350 us (common mode 2kA). The maximum load current it can handle is 1A. It provides voltage protection levels of <20V (L-L) and <350V (L-PE) at a series connection rate of 1 kV/ms. The network protector is rack mountable and has an IP20 rating.

Technical Specifications

Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 20W x 88H x 483L
Lightning Impulse Current (10/350 µs) - Iimp (kA) 1, 2 (common mode)
Maximum Continuous Operating Voltage MCOV AC (V) 4
Maximum Continuous Operating Voltage MCOV DC (V) 6
Maximum Discharge Current (8/20µs) - Imax (kA) 5, 10 (common mode)
Maximum Load Current - I? (A) 1
Mounting Type Rack
No. of Pairs 4
Operational Temperature Range (°C) -40 to 70
Standards and Approvals IEC 61643-21, AS/NZS 1768, UL 497B, ITU-T K.44, AS/CA S008, AS/NZS 4117, AS/CA S009
Terminal Type RJ45 Socket
Voltage Protection Level (1kV/µs) - Up (kV) <0.02 (L-L) < 0.35 (L-PE)
Weight (kg) 2
