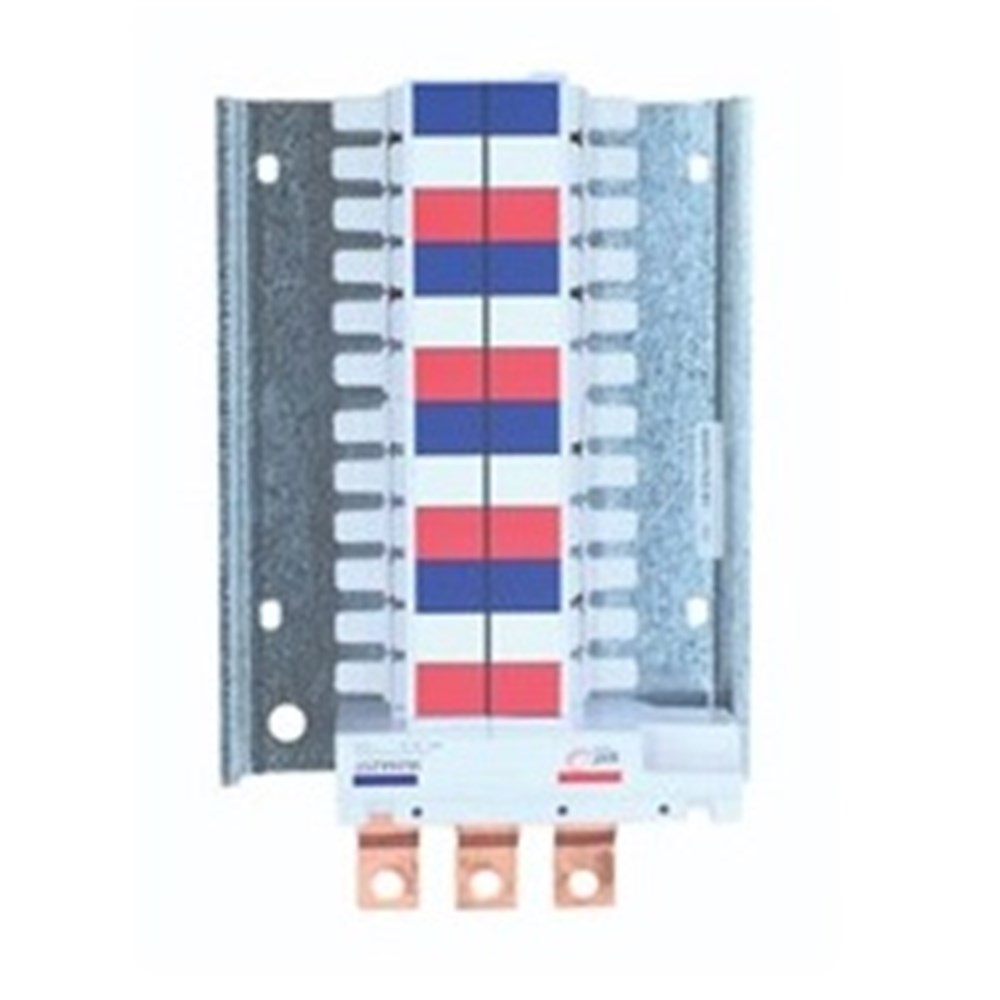

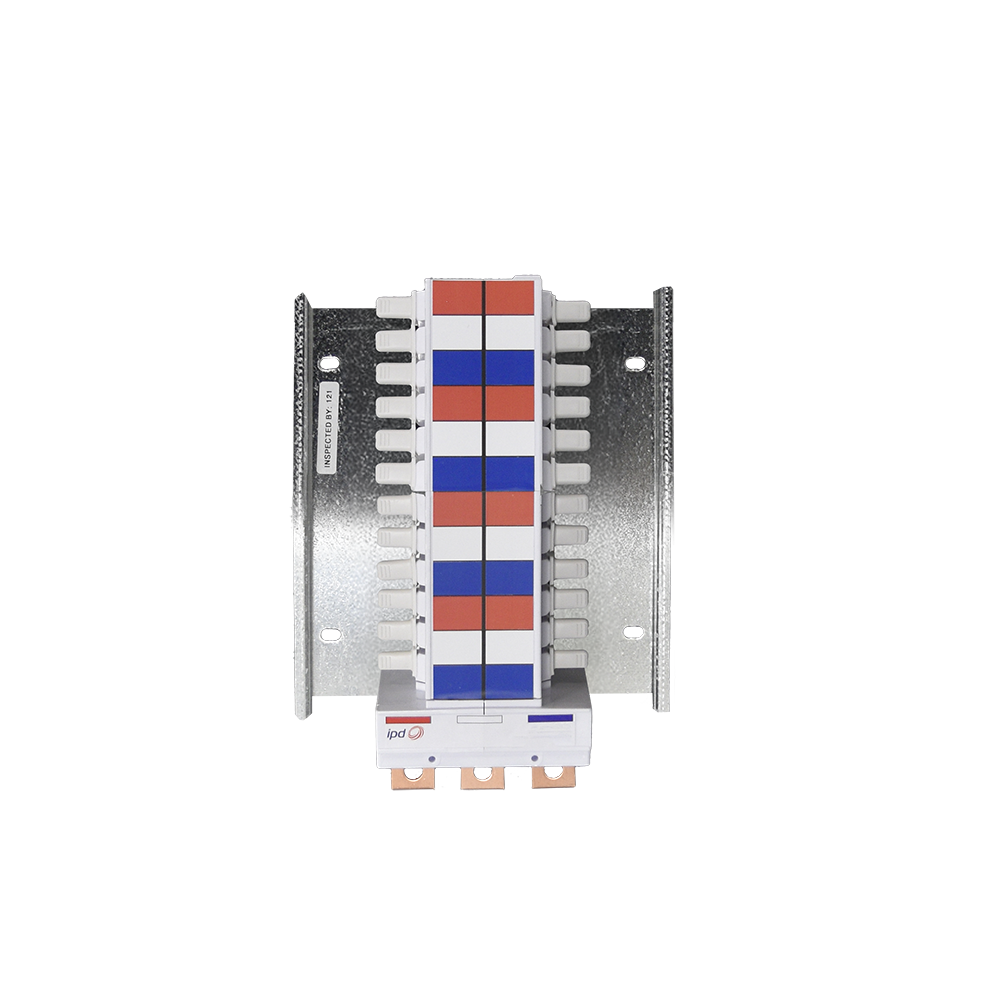

IPD IT24A25B ENCAPSUL. CHASSIS 24P 250A BOTTOM FD 18mm PITCH

The Encapsulated Chassis is designed with 24P and a 250A capacity. It features a bottom feed and an 18mm pitch. The chassis has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 2mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV, making it suitable for S200 breakers in the IA range IPD.
