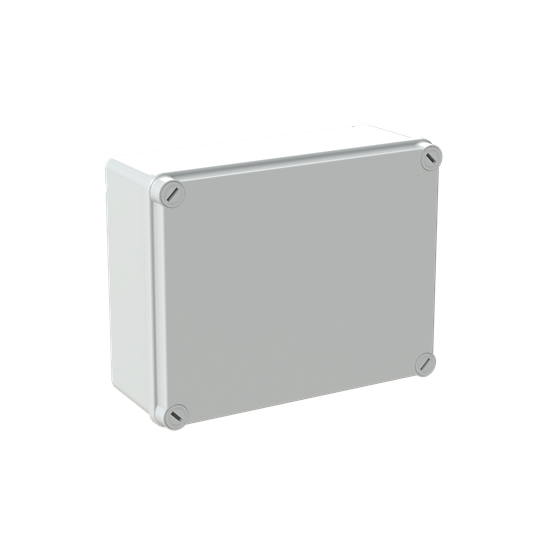

ABB LE00856 Plastic Enclosure Rectangular Plastic Grey 220W 170H 80D Opaque Door

Product Code: LE00856

  • Durable thermoplastic construction
  • IP65 for dust and water resistance
  • Operates in -25 to 75°C range
  • Secure screwed opaque door
  • Halogen-free for safety
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Plastic Enclosure
Brand ABB
Ambient Temperature -25 deg C
Colour Grey
Cover Attachment Screwed
Cover Colour Opaque
Cover Style Blind Cover
Degree of Protection IP65
Depth 80 mm
Door Type Opaque Door
Finish Untreated
Halogen Free Yes
Height 170 mm
Lid Screw Type 1/4 Turn Plastic
Material Plastic
Operational Temperature -25 to 75 deg C
Rated Insulation Voltage 1500 V
Sealable Yes
Shape Rectangular
Width 220 mm

Description

<p>When selecting a thermoplastic enclosure for industrial or commercial applications, several key factors come into play. This particular enclosure, crafted from high-quality plastic, offers robust protection and versatility for various environments. With its IP65 degree of protection, it is designed to withstand dust ingress and low-pressure water jets from any direction, making it suitable for both indoor and outdoor installations.</p><p>Measuring 220 mm in width, 170 mm in height, and 80 mm in depth, this rectangular enclosure provides ample space for housing electrical components while maintaining a compact form factor. Its grey colour ensures a neutral appearance that easily blends into most settings without drawing unnecessary attention.</p><p>The operational temperature range of -25 to 75 degrees Celsius allows the enclosure to perform reliably across diverse climates and conditions. This wide temperature tolerance makes it an excellent choice for Australian environments where temperatures can vary significantly.</p><p>Designed with functionality in mind, the enclosure features an opaque door with a blind cover style. The door is securely attached using screwed fastenings with a convenient 1/4 turn plastic lid screw type. This design not only facilitates easy access but also ensures that the contents remain protected against environmental factors when closed.</p><p>Safety is further enhanced by its rated insulation voltage of 1500 V, providing peace of mind when dealing with electrical installations. Additionally, this halogen-free product minimizes potential risks associated with fire hazards by reducing toxic smoke emissions if exposed to flames.</p><p>For those requiring additional security measures or compliance with specific regulations, the sealable design allows users to secure the contents effectively. The untreated finish retains the material&amp;#39;s natural properties while ensuring durability over time.</p><p>In summary, this thermoplastic enclosure combines practicality and resilience through its thoughtful design features such as IP65 protection rating, wide operational temperature range, high insulation voltage capability along with user-friendly aspects like screwed cover attachment system which make it ideal solution across various technical applications within industrial commercial sectors alike ensuring safe reliable performance throughout lifecycle usage scenarios possible encountered Australia’s dynamic environment demands today tomorrow beyond!</p>
