Standard Feed Through Terminal Blocks

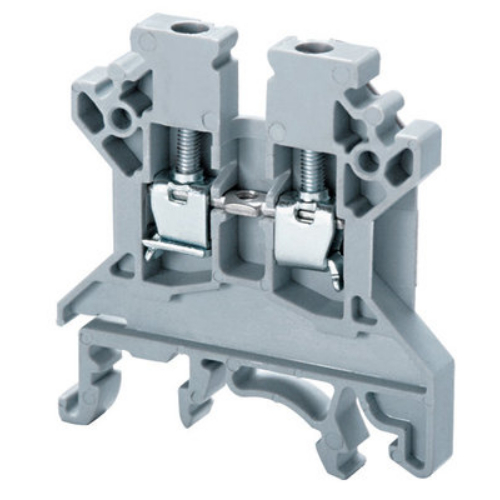

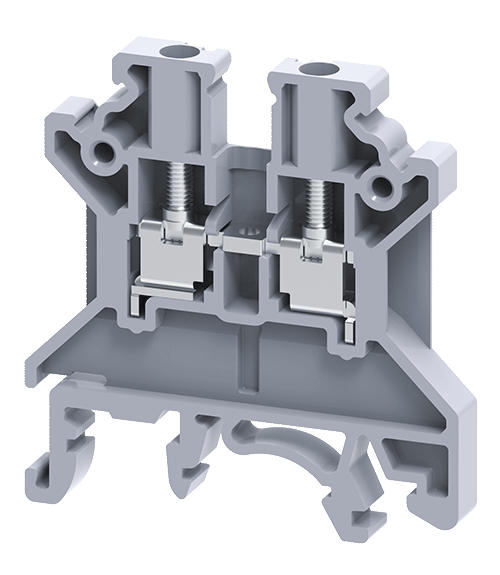

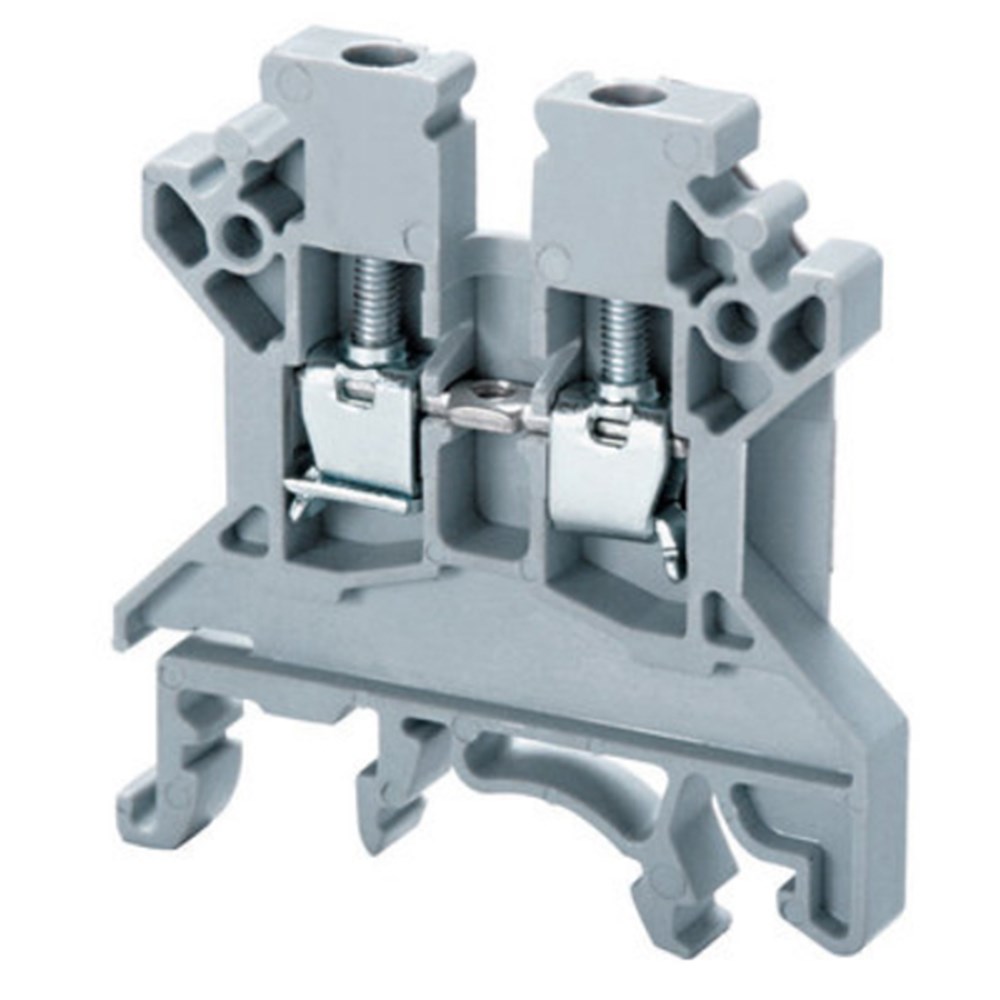

CONNECTWELL 2.5MM SCREW CLAMP 'GREY' TERMINAL BLOCK CTS2.5UN

Product Code: CTS2.5UN

The Standard Feed Through Screw Clamp Terminal Block is designed for use with stranded conductors ranging from 0.2mm² to 2.5mm². It has dimensions of 43mm in length, 5mm in width, and 46.2mm in height. The terminal block is coloured grey and has a voltage rating of 1000V and a current rating of 24A. It can be mounted on DIN 32, DIN 35, and DIN 35-15 rails.

Technical Specifications

Brand CONNECTWELL
Cable Entry Side
Colour Grey
Conductor Cross Section (mm²) 2.5
Conductor Cross Section - Stranded (mm²) 0.2 - 2.5
Dimensions (mm) 43L x 5W x 46.2H
Housing Material Polyamide
Length (mm) 43
Mounting Type DIN 32/DIN 35/DIN 35-15 Rail
Pollution Degree 3
Rated Current (A) 24
Rated Voltage (V) 1000
Screw Size M2.5
Surge Voltage (kV) 8
Tightening Torque (Nm) 0.4
Width (mm) 5
Wire Stripping Length (mm) 8
