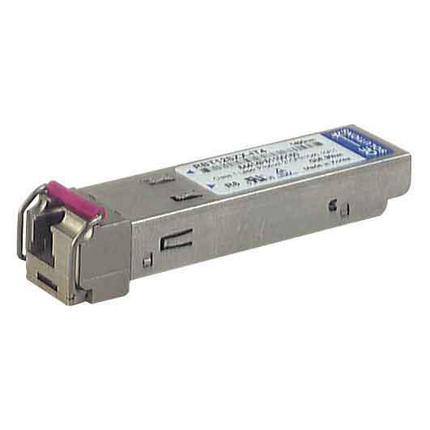

HIRSCHMANN SFP FIBER OPTIC BI-DIRECTIONAL GIGABIT ETHERNET TRANSCEIVER SM, TYPE A, EXTENDED TEMPERATURE RANGE 943974001

Product Code: 943 974-001

Hirschmann's SFP fiber optic bi-directional Gigabit Ethernet Transceiver, type A, is designed for high-speed data transmission over single-mode fiber. It supports a 1000 Mbit/s connection with an LC connector and operates across an extended temperature range, making it suitable for demanding environments. Specifications include: 1 x 1000 Mbit/s port with LC connector.

Technical Specifications

Electromagnetic Capability 10 V/m (80-1000 MHz)
Electrostatic Discharge (kV) 6 kV Contact Discharge, 8 kV Air Discharge
Maximum Temperature (°C) 85
Mean Time Between Failure (MTBF) 9325 Years
Minimum Temperature (°C) -40
No. of Fiber Ports 1
Relative Humidity 5-95 %
Resistance to Vibrations 1 mm, 2 Hz-13.2 Hz, 90 min. 0.7 g, 13.2 Hz-100 Hz, 90 min. 3.5 mm, 3 Hz-9 Hz, 10 cycles, 1 octave/min. 1 g, 9 Hz-150 Hz, 10 cycles, 1 octave/min
Software Diagnostics Optical input and output power, transceiver temperature
Transition Type 2 kV power line, 1 kV data line
Brand HIRSCHMANN
Degree of Protection IP20
Dimensions (mm) 13.4W x 8.5H x 56.5D
Mounting Type SFP Slot
Operational Temperature Range (°C) -40 - 85
Power Consumption (W) 1
Series M-SFP-BIDI
Storage Temperature Range (°C) -40 - 85
Surge Voltage (kV) Power Line: 2 kV (Line/Earth), 1 kV (Line/Line), 1 kV Data Line
Weight (g) 40
