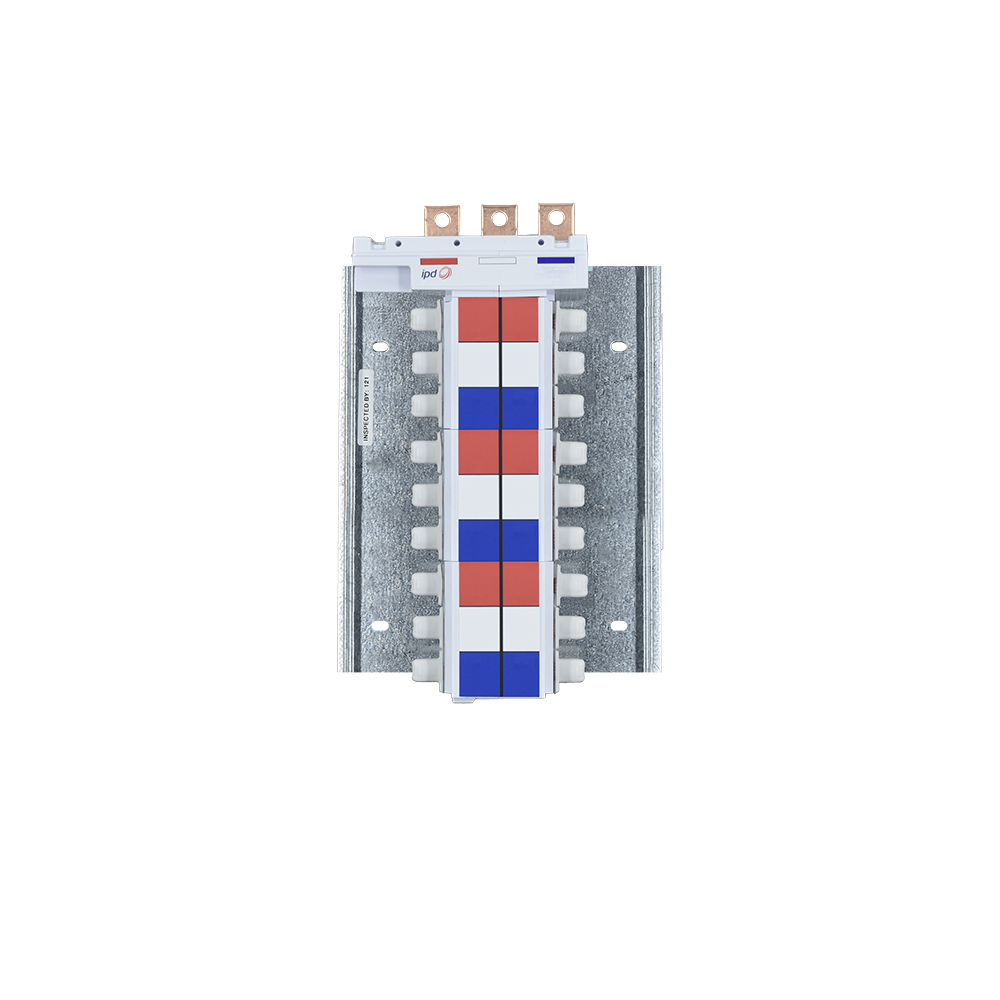

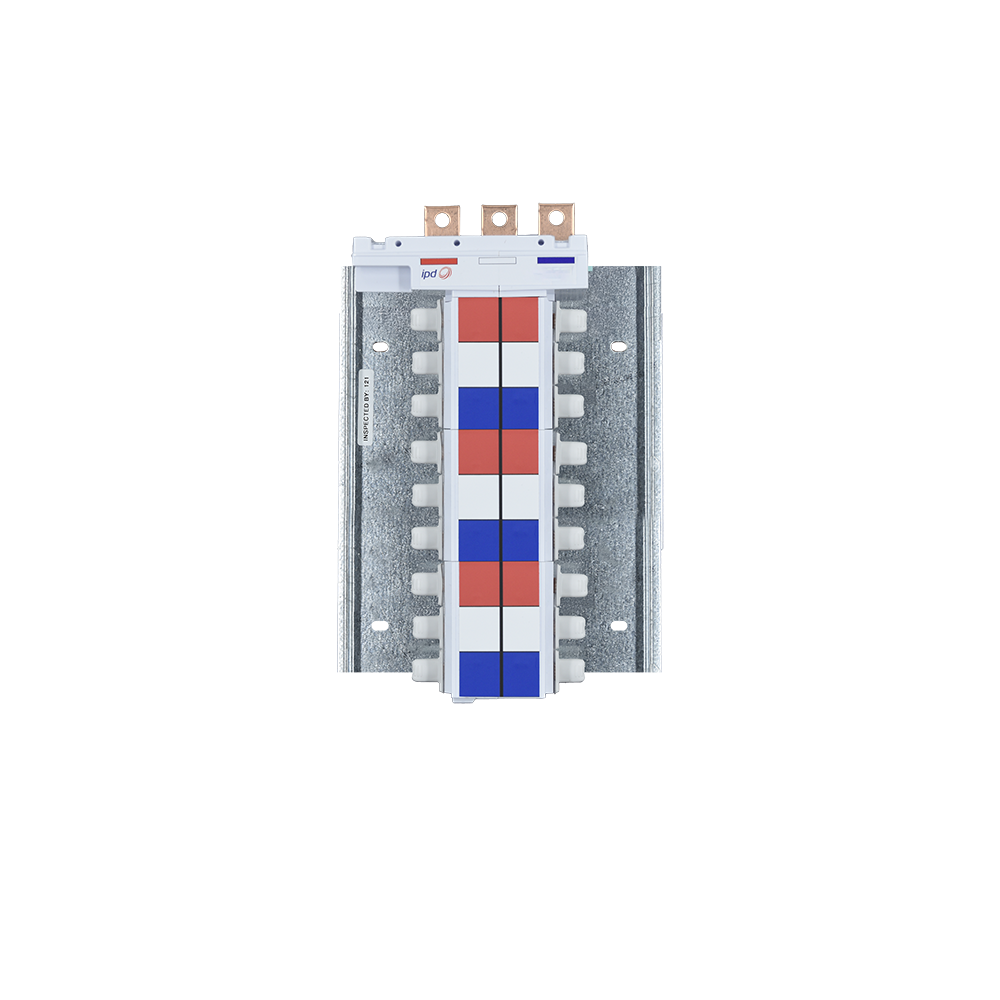

IPD ITH18A40T ENCAPSUL. CHASSIS 18P 400A TOP FD 27mm PITCH

The Encapsulated Chassis 18P is a top feed chassis with a 400A capacity and a pitch of 27mm. It has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The incoming terminals are made of 3mm thick copper, while the base is made of 1.2mm thick galvanized iron. The chassis is coated with duravin SCI-TV, making it suitable for S800 breakers in the IA range IPD.
