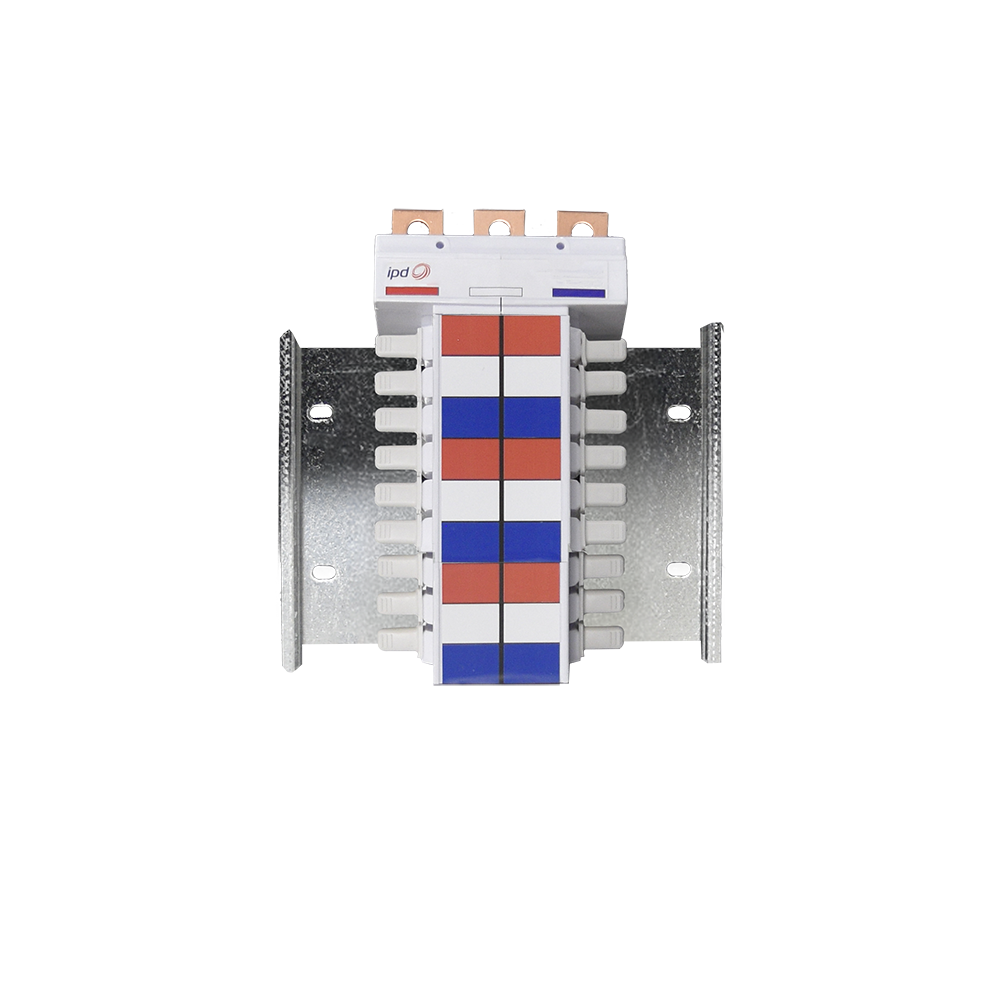

IPD 18 POLE ENCAPSULATED CHASSIS TOP FEED 250A RATED IT18A25T

Product Code: IT18A25T

Technical Specifications

Base Wall Thickness (mm) 1.2
Rated Short-time Withstand Current - Icw (kA/0.1s) 25
Terminal Width (mm) 2
Brand IPD
Base Material Galvanized Iron
Enclosure Coating Material Duravin SCI-TV
No. of Poles 18
Pitch Size (mm) 18
Rated Current (A) 250
Rated Short-time Withstand Current - Icw (kA/1s) 10
Suitable For S200 breakers
Terminal Material Copper
