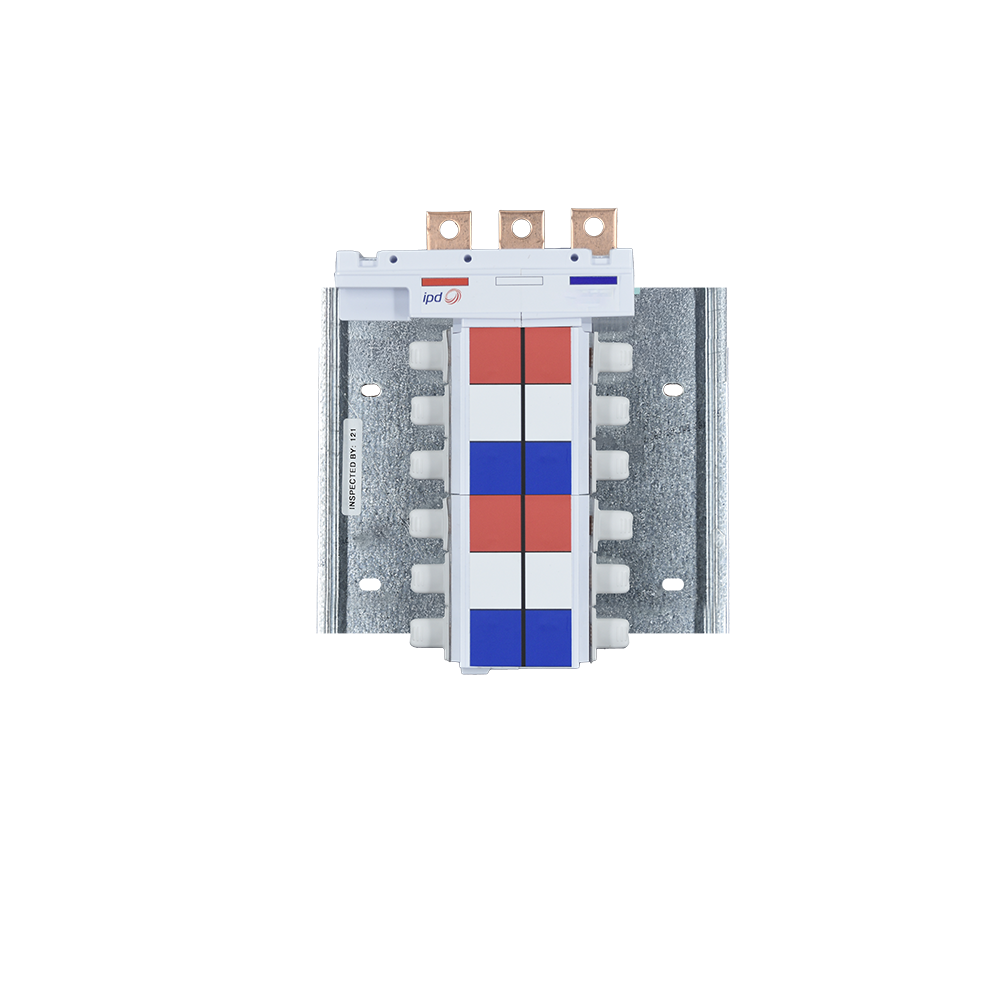

IPD ITH12A40T ENCAPSUL. CHASSIS 12P 400A TOP FD 27mm PITCH

The Encapsulated Chassis is designed for 12P 400A top feed with a 27mm pitch. It has a withstand rating of Icw 25kA/0.1s and 10kA/1s, as well as an Icc rating of 30kA. The chassis features 3mm thick copper incoming terminals and a 1.2mm thick galvanized iron base. It is coated with duravin SCI-TV, making it suitable for S800 breakers in the IA range IPD.
