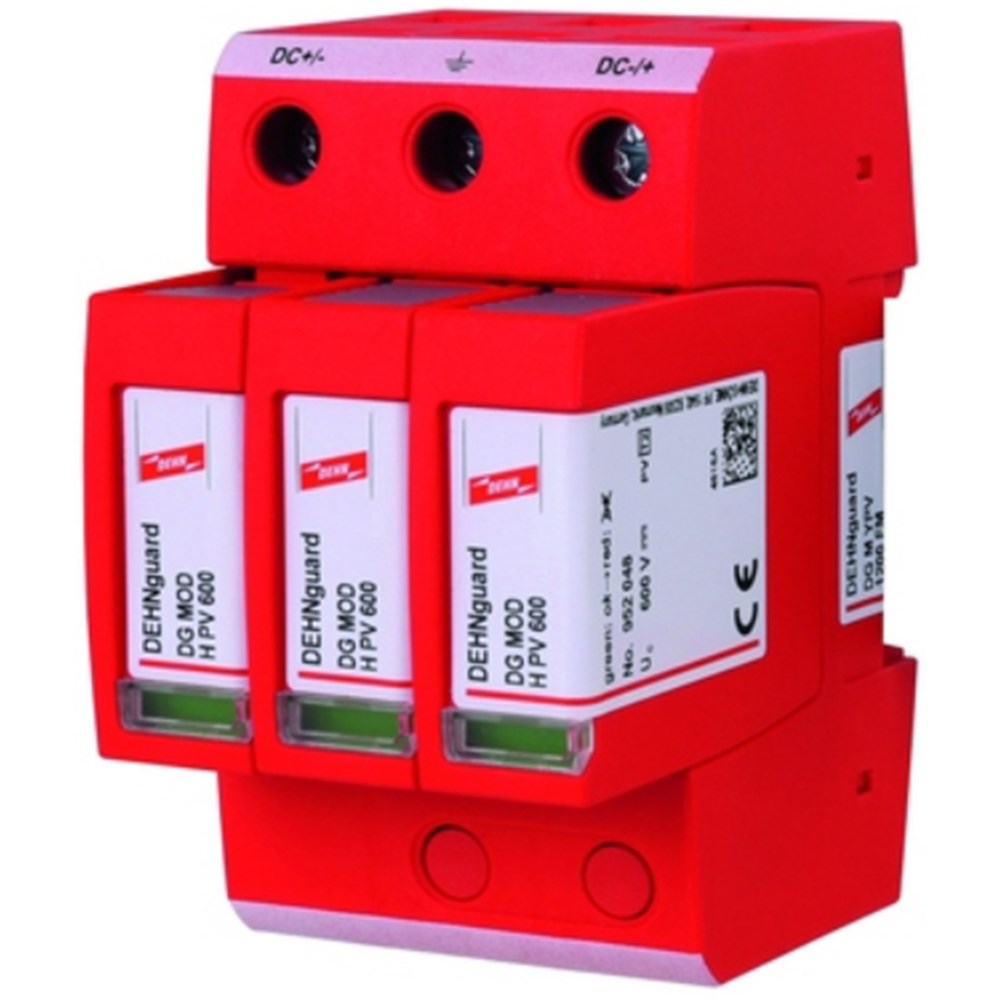

DEHN SURGE ARRESTER TYPE 2 DEHNGUARD M MULTIPOLE FOR PV SYSTEMS UP TO 1170V DC DGMYPV1200FM

Product Code: DGMYPV1200FM

Multipole DEHNguard M YPV SCI type 2 surge arrester according to EN 61643-31 consisting of a base part and plug-in protection modules. High reliability due to "Thermo Dynamic Control" SPD monitoring device. For protecting low-voltage consumer´s installations against surges. For use in accordance with IEC 60364-7-712:2002-05 (Requirements for special installations or locations - Solar photovoltaic (PV) power supply systems).

Technical Specifications

Brand DEHN
Article No. 952565
Degree of Protection IP20
Dimensions (mm) 0.09W x 0.12L x 0.07D
Maximum Discharge Current (8/20µs) - Imax (kA) 40 ((DC+/DC-) --> PE)
Maximum PV Voltage DC (V) 1170
Mounting Type DIN Rail
No. of Modules 3
No. of Poles 2P+PE
Nominal Discharge Current (8/20µs) - In (kA) 20 ((DC+/DC-) --> PE)
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 25
Short-Circuit Current Rating - Iscpv (kA) 10
Signal C/O Contact Yes
Total Discharge Current (8/20µs) - Itotal (kA) 40
Voltage Protection Level - Up (kV) ≤ 4
Weight (kg) 0.38
