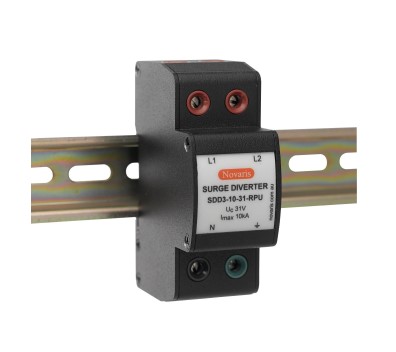

NOVARIS SURGE DIVERTER 2 LINES 50kA SDD3-10-31-RPU

Product Code: SDD3-10-31-RPU

The Solar Protection Railway Signal offers exceptional protection for Railway Points Systems. It operates at a nominal voltage of 24VDC and a maximum continuous voltage of 31VDC. With a maximum discharge current of 50kA at 8/20 ms, it ensures reliable performance. The Voltage protection level is less than 150V with a shunt connection. This product is designed for DIN Rail IP20 installation.

Technical Specifications

Nominal Voltage DC (V) 24
Voltage Protection Level (3kA 8/20µs) - Up (kV) <0.15
Brand NOVARIS
Connection Type Shunt
Degree of Protection IP20
Dimensions (mm) 95H x 36W x 70D
Maximum Continuous Operating Voltage MCOV DC (V) 31
Maximum Discharge Current (8/20µs) - Imax (kA) 50
Mounting Type DIN rail
Operational Temperature Range (°C) -40 to 65
Series SDD3
Standards and Approvals IEC 61643-1, AS/NZS 1768
