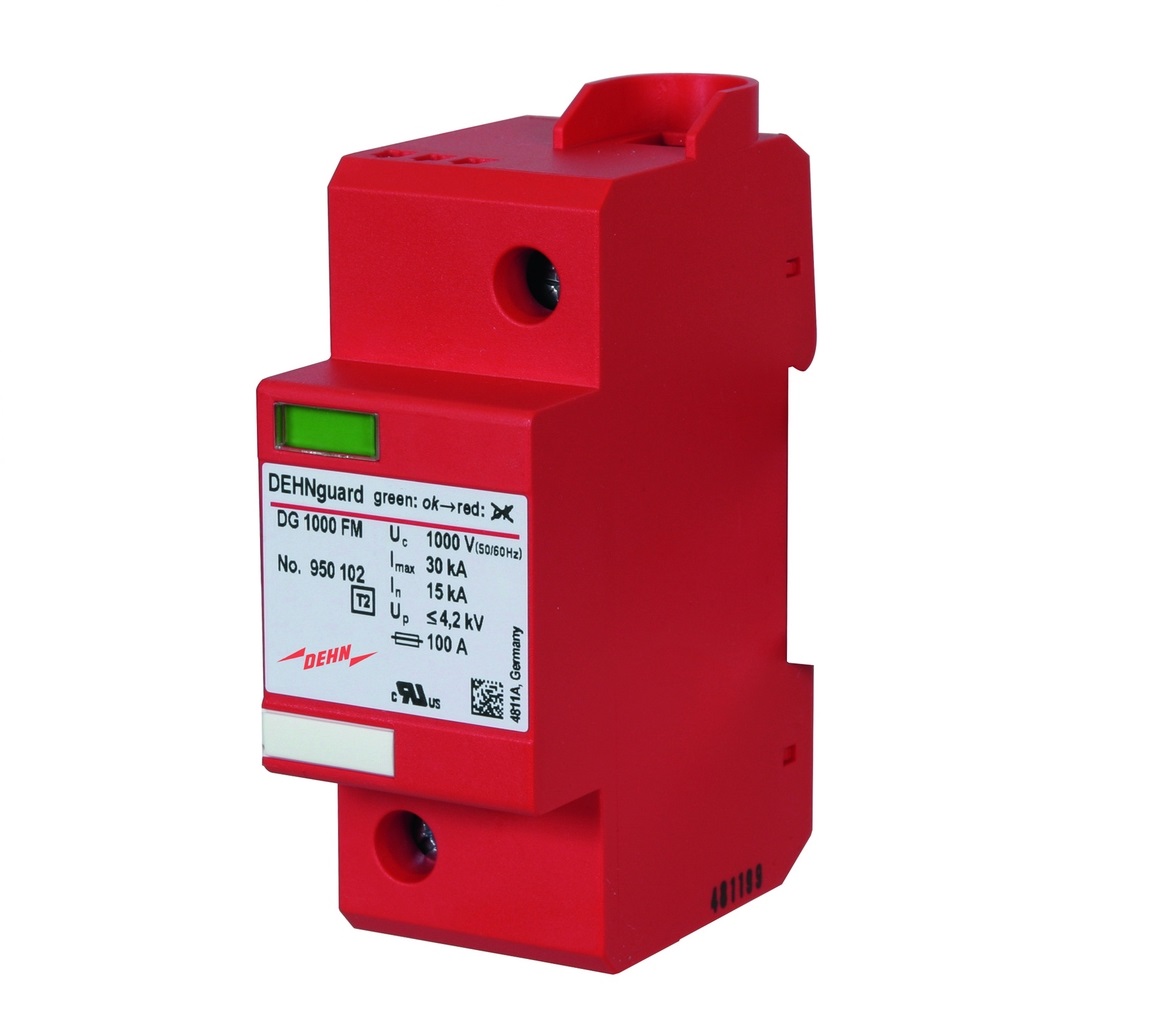

DEHN SURGE ARRESTER TYPE 2 DEHNGUARD 1-POLE UC 1000V AC DG1000

Product Code: DG1000

Compact single-pole DEHNguard 1000 surge arrester (type 2 according to EN 61643-11) with a rated voltage UC = 1000 V a.c. High reliability due to Thermo Dynamic Control disconnector. For protecting low voltage consumer´s installations against surges.

Technical Specifications

SPD Type Type 2
Brand DEHN
Article No. 950102
Circuit Type DB
Degree of Protection IP20
Dimensions (mm) 0.07W x 0.1L x 0.06D
Maximum Continuous Operating Voltage MCOV AC (V) 1000
Maximum Continuous Operating Voltage MCOV DC (V) 1000
Maximum Discharge Current (8/20µs) - Imax (kA) 30
Mounting Type DIN Rail
No. of Modules 2
No. of Poles 1P
Nominal Discharge Current (8/20µs) - In (kA) 15
Nominal Voltage AC (V) 830
Operating State/Fault Indication Green/Red
Response Time (ns) ≤ 25
Short-Circuit Withstand Capability - Iscc? (kArms) 25
Voltage Protection Level - Up (kV) ≤ 4.2
Weight (kg) 0.21
