Product Code: RJ45-1CAT6

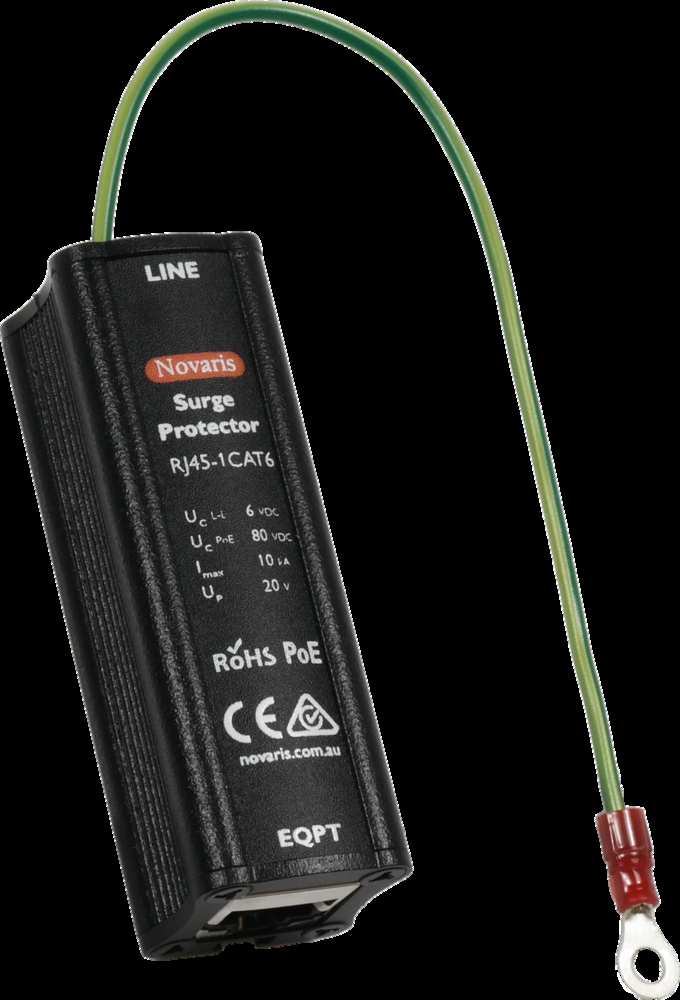

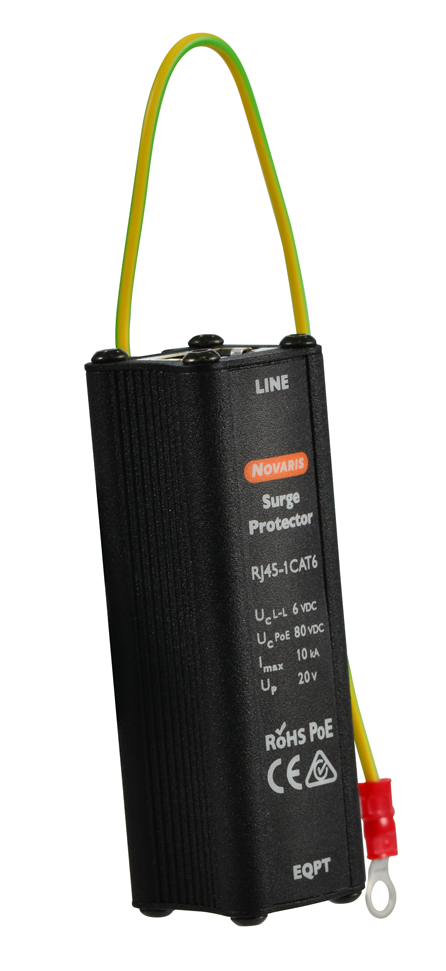

: The Novaris RJ45-1CAT6 Local Area Network Protector is engineered to safeguard equipment connected to twisted pair network cabling systems from surges. It supports CAT5, CAT6, and CAT6A cabling standards and is capable of handling up to Gigabit/1000BaseT network speeds while being compatible with PoE standards allowing up to 160W power on a 4 pair system. With robust construction including a metal body and shield pass-through connectors, it offers reliable protection in various environments.

Maximum Load Current - I? (A)	1
No. of Pairs	4
Voltage Protection Level (1kV/µs) - Up (kV)	<0.02 (L-L) < 0.35 (L-PE)
Brand	NOVARIS
Connection Type	Series
Degree of Protection	IP20
Dimensions (mm)	27W x 28H x 80L
Lightning Impulse Current (10/350 µs) - Iimp (kA)	1, 2 (common mode)
Maximum Continuous Operating Voltage MCOV AC (V)	4
Maximum Continuous Operating Voltage MCOV DC (V)	6
Maximum Discharge Current (8/20µs) - Imax (kA)	5, 10 (common mode)
Mounting Type	Rack
Operational Temperature Range (°C)	-40 to 70
Standards and Approvals	IEC 61643-21, AS/NZS 1768, UL 497B, ITU-T K.44, AS/CA S008, AS/NZS 4117, AS/CA S009
Terminal Type	RJ45 Socket
Weight (kg)	0.2
