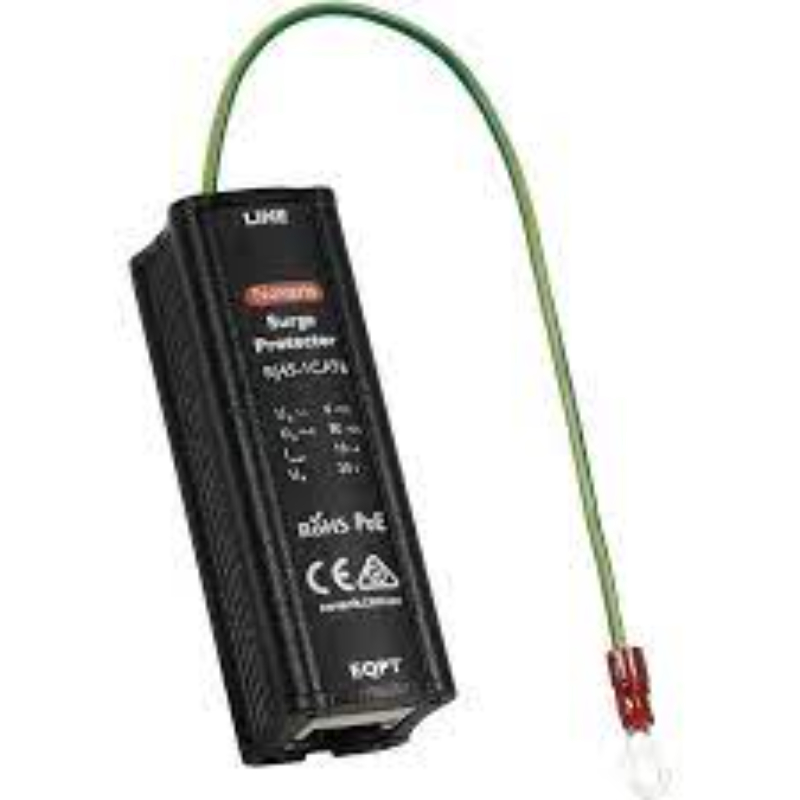

NOVARIS LAN PROTECTOR RJ45 CAT6, POE STANDARDS COMPLIANT RJ45-1CAT6-EC90

Product Code: RJ45-1CAT6-EC90

LAN protector with 10kA front end protection and low impedance secondary protection, compatible with PoE and can handle yp to 1A of current per signal pair at up to 80VDC. This combination allows for gigabit PoE systems with 4 pair power up to an outstanding 160W. Number of lines: 4 pair & sheild

Technical Specifications

Maximum Discharge Current (10/350µs) - Imax (kA) 1
Maximum Load Current - I? (A) 1
Maximum PoE Voltage DC (V) 80
Brand NOVARIS
Connection Type Series
Degree of Protection IP20
Dimensions (mm) 27W x 36H x 80L
Housing Material Aluminium
Maximum Continuous Operating Voltage MCOV AC (V) 4
Maximum Continuous Operating Voltage MCOV DC (V) 6
Maximum Discharge Current (8/20µs) - Imax (kA) 5
Mounting Type TS35 DIN Rail
Operational Temperature Range (°C) -40 to +85
Series RJ45-Cat6
Standards and Approvals IEC 61643-21:2012, AS/NZS 1768:2007
Terminal Type RJ45 Socket
Weight (kg) 0.2
