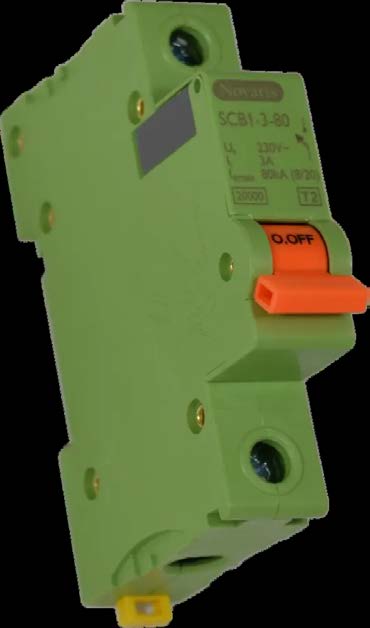

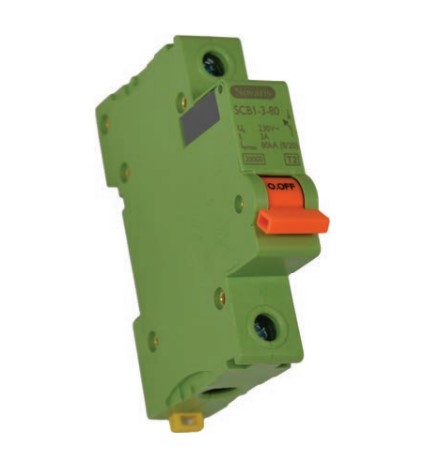

NOVARIS SPD DISCONNECTOR, 80KA, DIN RAIL MOUNT SCB1-3-80

Product Code: SCB1-3-80

The Novaris SCB1-3-80 Surge Circuit Breaker is engineered to provide overcurrent protection for shunt connected Surge Protection Devices (SPDs) with ratings up to 100kA. It ensures coordination with upstream supply circuit breakers or fuses and can withstand impulse currents up to 80kA. The SCB1-3-80 trips at AC currents above 3 amps but allows impulse currents, ensuring comprehensive protection for your electrical systems.

Technical Specifications

Brand NOVARIS
Degree of Protection IP20
Dimensions (mm) 17W x 72H x 85L
Impulse Withstanding Current (kA) 80
Mounting Type DIN rail
No. of Poles 1P
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -25 to 60
Standards and Approvals IEC61643-11, IEC60898-1
Weight (g) 118
