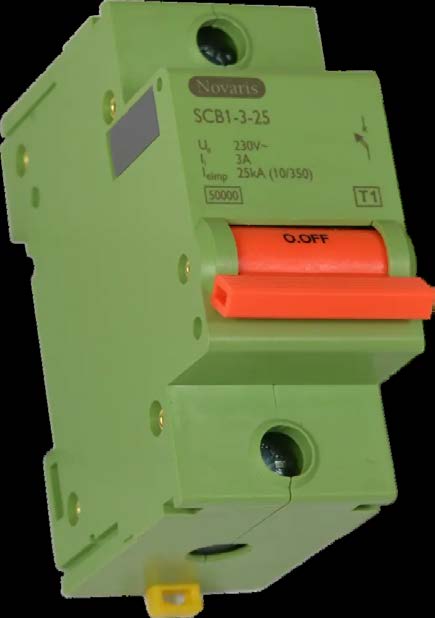

NOVARIS SPD DISCONNECTOR, 230VAC, 25KA IMPULSE CURRENT SCB1-3-25

Product Code: SCB1-3-25

The Novaris SCB1-3-25 is a surge circuit breaker tailored for protecting shunt connected SPDs with ratings up to 200kA or an I rating to 25kA, ideal for main switchboards and coordinating with upstream OCPDs.

Technical Specifications

Impulse Withstanding Current (kA) 25
Brand NOVARIS
Degree of Protection IP20
Dimensions (mm) 35W x 72H x 85L
Mounting Type DIN rail
No. of Poles 1P
Nominal Voltage AC (V) 230
Operational Temperature Range (°C) -25 to 60
Standards and Approvals IEC61643-11, IEC60898-1
Weight (kg) 0.204
