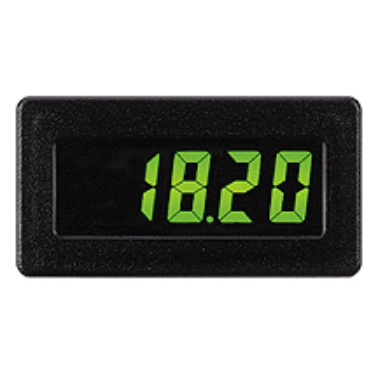

RED LION CUB4 DC CURRENT METER WITH YELLOW/GREEN BACKLIGHTING CUB4I010

Product Code: CUB4I010

This DC Current Meter is compact, measuring 39 mm x 75 mm. It features a 3 1/2 digit display with a 0.6" (15.2 mm) LCD screen and yellow/green LED backlighting. The meter can measure current ranging from 0-199.9 uA to 199.9 mA DC. It is designed to meet NEMA 4X/IP65 standards for protection against dust and water ingress.

Technical Specifications

Number of Display Digits 3.5
Brand RED LION
Display Screen Size (Inch) 0.6
Degree of Protection IP65
Dimensions (mm) 74.9W x 39.1H x 49.8D
Display Screen Type LCD
Inputs ±199.9 µADC, ±1.999 mADC, ±19.99 mADC, ±199.9 mADC
Operational Temperature Range (°C) 0 to 60
Rated Voltage DC (V) 9 - 28
Standards and Approvals EN 61326-1, IEC/EN 61010-1
