Product Code: PAXD0010

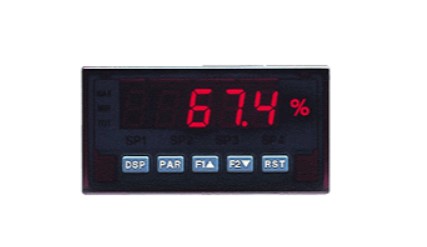

The Universal DC Input device offers 4 voltage ranges with a maximum of 300 VDC and 5 current ranges with a maximum of 2A DC. It also provides 3 resistance ranges, with a maximum of 10K ohms. The device has a compact size of 1/8 DIN (50 mm x 97 mm) and features a 5-digit, 0.56" (14 mm) LED display that is easily readable even in sunlight. It can be upgraded with option cards for added functionality. The device operates on an input power range of 11 to 36 VDC, with a nominal voltage of 24 VDC. It is designed to meet NEMA 4X/IP65 standards for protection against dust and water ingress.

DIN Size	1/8
Measurement Range	±200 µA, ±2 mA, ±20 mA, ±200 mA, ±2 A, ±200 mV, ±2 V, ±20 V, ±300 V DC, 100/1000/10KOhm
Measurement Type	Universal DC Analog
Number of Display Digits	5 Digits
Brand	RED LION
Degree of Protection	IP65 (Face), IP20 (Rear)
Dimensions (mm)	97 x 50
Display Screen Type	Red Backlight, LED
Mounting Type	Panel
Rated Supply Voltage AC (V)	24
Rated Supply Voltage DC (V)	11 - 36
Series	PAX
Standards and Approvals	CE, EN 61326-1, EN 61010-1, EN 61010-2-030, UL, RoHS

Process Meters & Controllers

RED LION PAX UNIVERSAL DC INPUT METER, RED DISPLAY, DC POWERED PAXD0010

Product Code: PAXD0010
