Product Code: CT10.241

The product features a wide-range input of 380-480V and passive power factor correction (PFC). With an efficiency of up to 92.9%, it ensures optimal energy usage. The input inrush current is negligibly low, minimizing any potential impact. It has power reserves that can be continuously used at 20% capacity up to a temperature of +45°C. The product operates at full output power within a temperature range of -25°C to +60°C. Additionally, it can be adjusted to parallel mode for load sharing purposes.

AC Input Type	Wide-range
Conformal Coating	No
Country of Origin	China / Czech Republic
Derating	6 W/°C
Derating Temperature (°C)	> +60
E Classification	E-CS01
Efficiency	92.80%
External Input Fuse Recommendation	B-6 A / C-3 A
Harmonic Correction	PFC
Input Inrush Current (A)	4 / 4
Input Inrush Current Limitation	Active
Input Voltage Range AC (V)	380-480
Integrated Decoupling Function	No
Maximum Ripple and Noise Voltage (mVpp)	50
Output Current Range (A)	10 - 8.6
Output Power (W)	240
Output Voltage (V)	24-28
Power Factor	0.53
Power Reserve Type	Power Boost
Power Reserves	20%
Special Application	Hazardous location, Marine, Semiconductor
Use In Crosslinking	Yes
Brand	PULS
Connection Type	Screw terminals
Customs Tariff Number	85044083
Degree of Protection	IP20
Dimensions (mm)	62W x 124H x 117D
Family	DIMENSION
Mounting Type	DIN Rail
Operational Temperature Range (°C)	-25 to 70
Power Loss (W)	18.6
Range	DIMENSION
Rated Current (A)	10
Series	C series
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Warranty Period (Months)	36
Weight (g)	750

Industrial Power Supplies

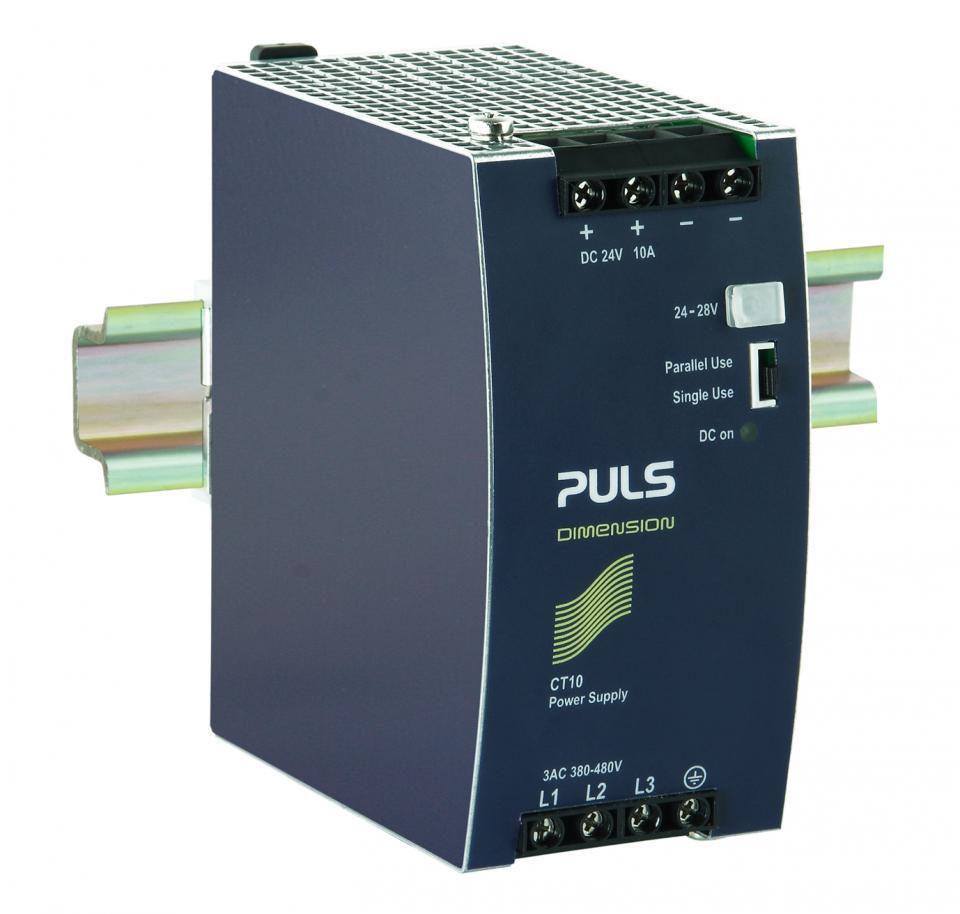

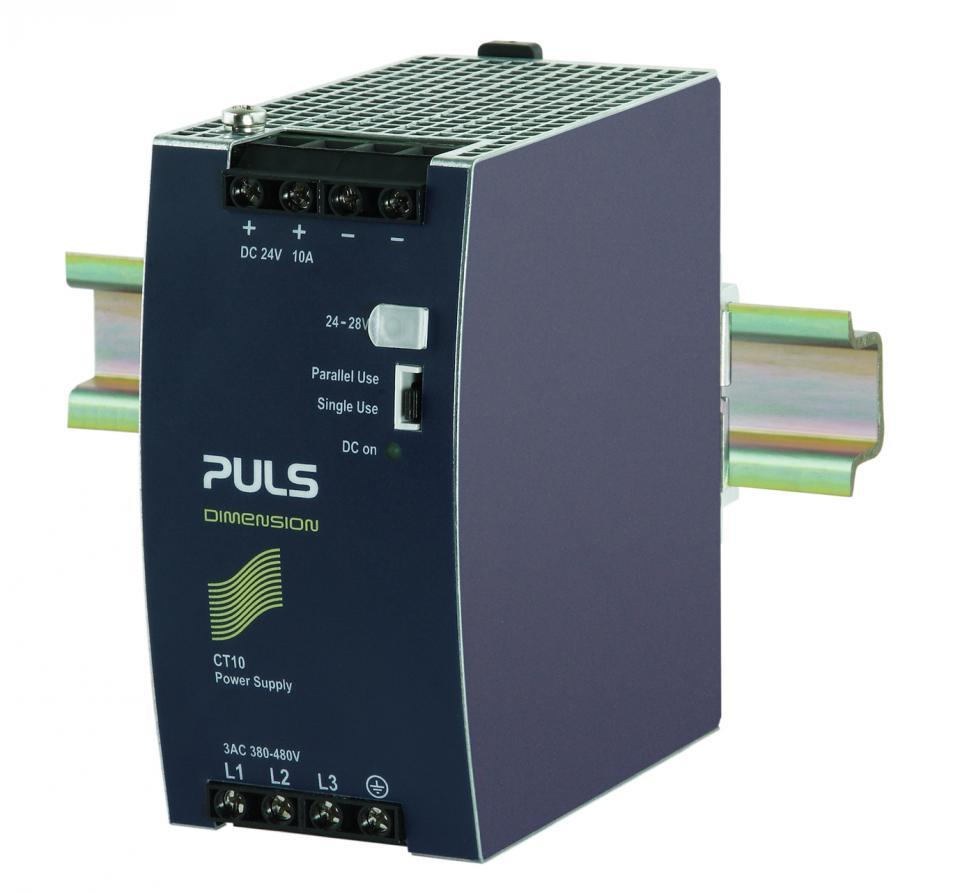

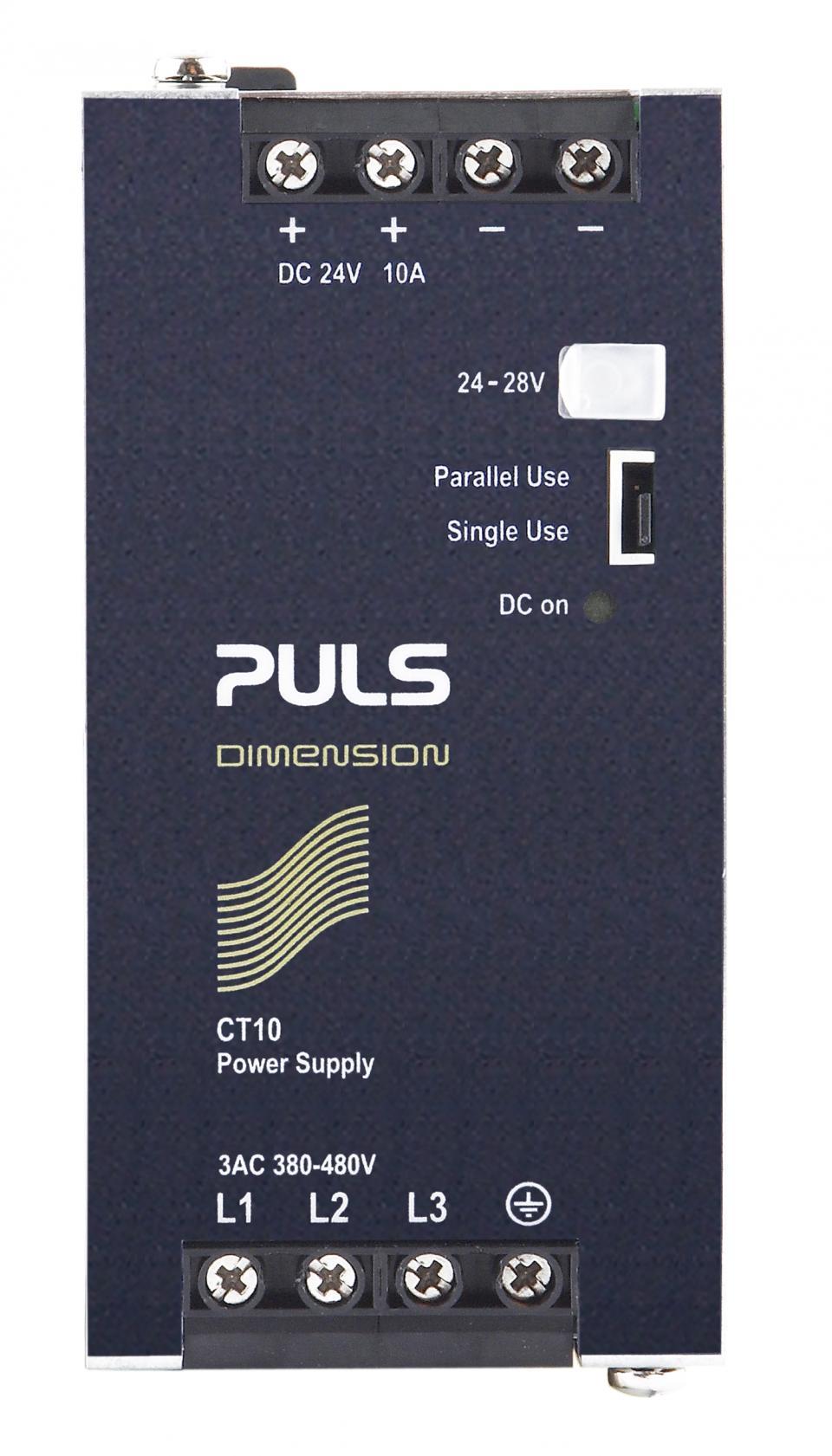

PULS DIN RAIL POWER SUPPLY 3 PHASE 24VDC 10A 240W CT10.241
