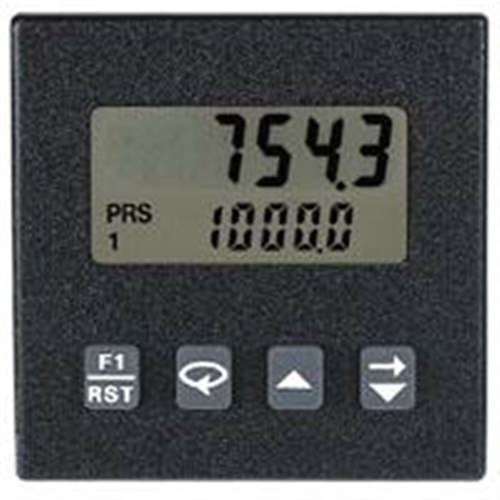

RED LION BATCH COUNTER, 1 NPN OC & 2 RELAY OUTPUTS, AC POWERED C48CB003

Product Code: C48CB003

The product is available in single, dual, or three preset versions. It has a compact size of 50 mm x 50 mm and features a 2-line, 6-character reflective LCD display. The device supports bi-directional and quadrature counting. It offers 1 NPN OC/2 relay outputs and can handle frequencies of up to 11 KHz. Additionally, it is rated as NEMA 4X/IP65 for protection against dust and water ingress.

Technical Specifications

DIN Size 1/16
Number of Display Digits 6
Brand RED LION
Display Screen Size (Inch) 0.3, 0.2
Degree of Protection IP65
Dimensions (mm) 50H x 50W
Display Screen Type LCD - Black Characters
Mounting Type Panel
Operational Temperature Range (°C) 0 to +50
Rated Operational Voltage AC (V) 85 - 250
Series C48C
