Product Code: 942 170-999-002

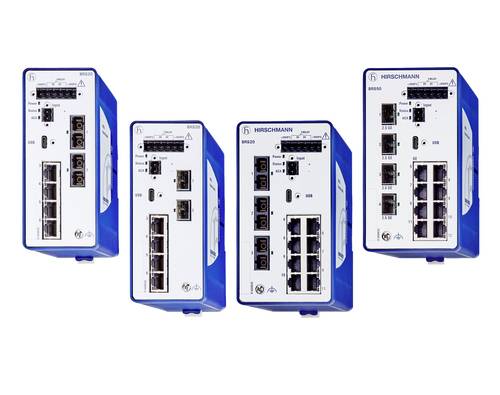

Explore the Hirschmann BOBCAT Series Managed Industrial Switch, a robust network solution designed for fast Ethernet applications. This switch features 12 ports, including 8 RJ45 ports supporting 10/100BASE TX and 4 fiber ports with dual-speed capabilities of 100/1000Mbit/s. It is equipped with four SFP slots for uplink connections at speeds of up to 1000 Mbit/s. Engineered for reliability in industrial environments, it operates within a temperature range of 0 to +60°C and boasts an IP30 protection rating. Installation is simplified with DIN Rail mounting, and the unit requires a power input ranging from 12 VDC to 24 VDC while maintaining low energy consumption at just 9 W. The Hirschmann BOBCAT Series is an ideal choice for engineers seeking high-performance network switches in demanding settings.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of 100Mb Ports	12
No. of Ethernet Ports	8
No. of Fiber Ports	4
Nominal Power (W)	9
Port Quantity and Type	8 x 10/100BASE-TX RJ45, 4 x 100/1000 Fiber SFP
Rated Maximum Operational Voltage DC (V)	24
Rated Minimum Operational Voltage DC (V)	12
Brand	HIRSCHMANN
Degree of Protection	IP30
Dimensions (mm)	138H x 73W x 115D
Mounting Type	DIN Rail
Operational Temperature Range (°C)	0 to +60
Power Consumption (W)	9
Rated Operational Voltage DC (V)	2 x 12 - 24
Series	BOBCAT
Standards and Approvals	CE, FCC, EN61131, EN62368-1
Switch Type	Switch - Managed
