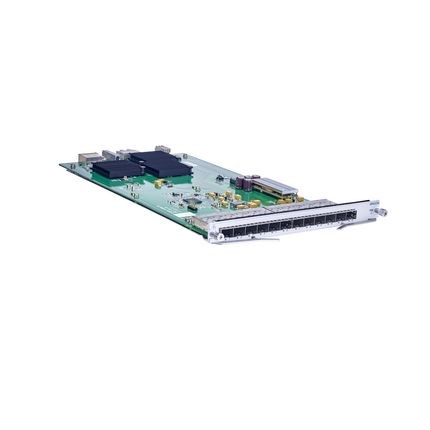

HIRSCHMANN DRAGON MACH4X00 MEDIA MODULE WITH 12 X FAST ETHERNET/GE SFP SLOTS 942155501

Product Code: 942 155-501

The Hirschmann DRAGON MACH4x00 media module is designed for flexibility and scalability in network infrastructure, featuring 12 x FE/GE SFP slots that are field-replaceable. This module supports both Fast Ethernet and Gigabit Ethernet, making it ideal for a wide range of applications. Specifications include: 12 x FE/GE SFP slots.

Technical Specifications

Maximum Temperature (°C) 60
Mean Time Between Failure (MTBF) 8 472 775 h
Minimum Temperature (°C) 0
No. of Ethernet Ports 12
No. of Fiber Ports 12
Nominal Power (W) 25
Port Quantity and Type 12 x Fast Ethernet/Gigabit Ethernet SFP
Relative Humidity 10-95 %
Software Diagnostics LEDs (power, link status, data)
Brand HIRSCHMANN
Degree of Protection IP20
Dimensions (mm) 220W x 334H x 23D
Mounting Type Plug-In Device
Operational Temperature Range (°C) 0 - 60
Power Consumption (W) 25 (Include SFP Transceiver)
Series D4K
Standards and Approvals cUL61010-1/-2-201, EN60950-1
Storage Temperature Range (°C) -40 - 70
Weight (g) 0.7 k
