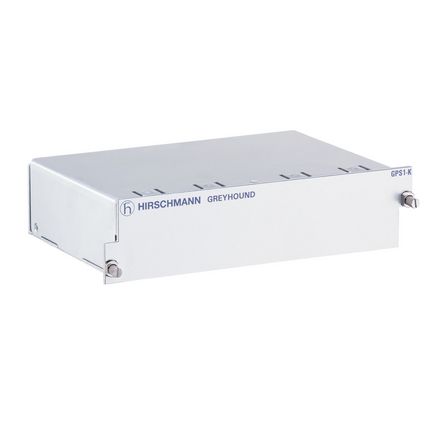

HIRSCHMANN POWER SUPPLY 60-250V DC, 110-240V AC 942 136-999-004

Product Code: 942 136-999-004

Optimize your network performance with Hirschmann's GREYHOUND GPS Switch Modules, designed for the GRS1040. These robust power supplies operate on a versatile range of 60 to 250 V DC and 110 to 240 V AC, ensuring reliability across different power systems. With an operational temperature range from 0°C to +60°C, they are built to withstand challenging environments. Compliance with industry standards such as CE, FCC, EN 61131, EN 60950, IEC 61850-3, and IEEE 1613 certifies their suitability for substation applications. Ideal for engineering solutions in the Network Solutions category, these switch modules are engineered for excellence.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
Nominal Power (W) 2.5
Rated Maximum Operational Voltage AC (V) 240
Rated Maximum Operational Voltage DC (V) 250
Rated Minimum Operational Voltage AC (V) 110
Rated Minimum Operational Voltage DC (V) 60
Brand HIRSCHMANN
Degree of Protection IP30
Mounting Type DIN Rail
Operational Temperature Range (°C) 0 to +60
Power Consumption (W) 2.5
Rated Operational Voltage AC (V) 110 - 240
Rated Operational Voltage DC (V) 60 - 250
Series GREYHOUND GPS
Standards and Approvals IEC 61850-3
