Product Code: 942 084-999-002

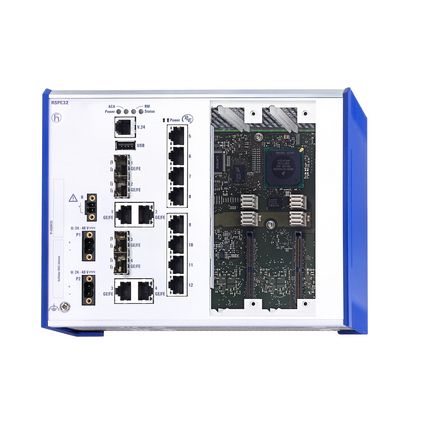

Discover the Hirschmann RSP Series Managed Switch, engineered for versatility and performance in your network infrastructure. This robust switch supports up to 28 ports, including 24 Fast Ethernet and 4 Gigabit Ethernet connections, accommodating both twisted pair and fiber optic cables through SFP modules. With a port configuration of 24 x 10/100 Mbit/s FE and 4 x 10/100/1000 Mbit/s GE, it ensures efficient data flow and connectivity. The dual power inputs range from 24 to 60 V DC, and the device operates reliably in temperatures from 0°C to +60°C. Equipped with HiOS Layer 2 Standard software, this switch meets critical CE, FCC, and EU Safety approvals. Ideal for engineers seeking a scalable network solution, the Hirschmann RSP Series is synonymous with reliability and quality in demanding industrial environments.

Maximum Temperature (°C)	60
Minimum Temperature (°C)	0
No. of 100Mb Ports	24
No. of 1GB Ports	4
No. of Ethernet Ports	12
No. of Fiber Ports	16
Nominal Power (W)	16
Rated Maximum Operational Voltage DC (V)	60
Rated Minimum Operational Voltage DC (V)	24
Software Level	HiOS Layer 3 Standard
Brand	HIRSCHMANN
Degree of Protection	IP30
Dimensions (mm)	164H x 209W x 115D
Mounting Type	DIN Rail
No. of Ports	24 x Fast Ethernet, 4 x Gigabit Ethernet, 4 x 10/100/1000 Combo Port, 8 x 10/100 Twisted Pair RJ45
Operational Temperature Range (°C)	0 to +60
Rated Operational Voltage DC (V)	24 - 48
Reference No.	RSPE30-24044O7T99SCCZ999HHSE3S
Series	RSP
Standards and Approvals	CE, EN60950-1, EN61131-2, FCC
Switch Type	Switch - Managed

Ethernet Switches

HIRSCHMANN MANAGED SWITCH, FAST ETHERNET 942 084-999-002

Product Code: 942 084-999-002

Technical Specifications
