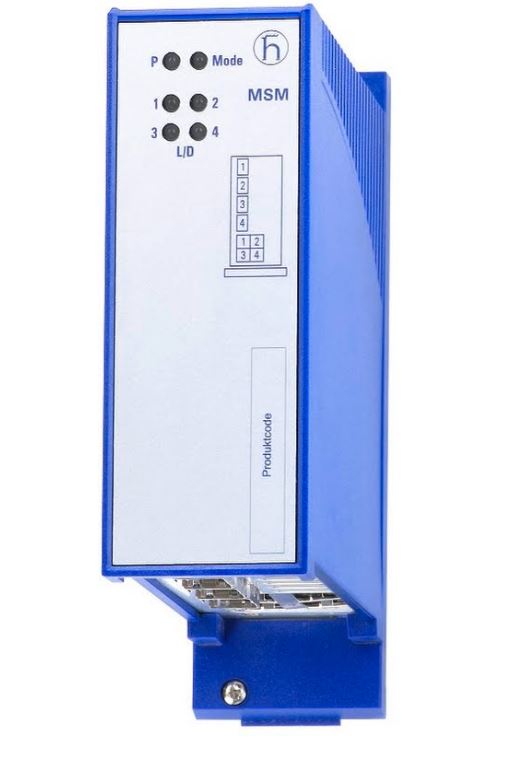

HIRSCHMANN GIGABIT ETHERNET MEDIA MODULE 942 077-999-001

Product Code: 942 077-999-001

Enhance your network's flexibility and performance with Hirschmann's MSM Series Switch Modules. These managed modular units are designed for MICE switch power media systems, offering a blend of Fast Ethernet and Gigabit Ethernet connectivity. Each module features four combo ports that support both twisted pair (TX) and RJ45 connections, accommodating speeds up to 1000 Mbit/s. Additionally, the modules come equipped with an M4 Multimode FX ST fiber optic SFP cage, ensuring compatibility with both 100 Mbit/s and 1000 Mbit/s fiber networks. Built to operate reliably in temperatures ranging from 0°C to +60°C, these switch modules meet stringent industry standards with CE, FCC, and EN 61131 (EN 60950) approvals. Trust in the quality and innovation of Hirschmann for your network solutions needs.

Technical Specifications

Maximum Temperature (°C) 60
Minimum Temperature (°C) 0
No. of 1GB Ports 4
No. of Ethernet Ports 4
Nominal Power (W) 5
Port Quantity and Type 4 x Gigabit Combo
Rated Maximum Operational Voltage DC (V) 48
Rated Minimum Operational Voltage DC (V) 24
Brand HIRSCHMANN
Degree of Protection IP30
Dimensions (mm) 133H x 38W x 118D
Mounting Type DIN Rail
Operational Temperature Range (°C) 0 to +60
Power Consumption (W) 5
Series MSM
Standards and Approvals C-Tick EN61131, EN60950
Suitable For PowerMICE Switches (MSP)
