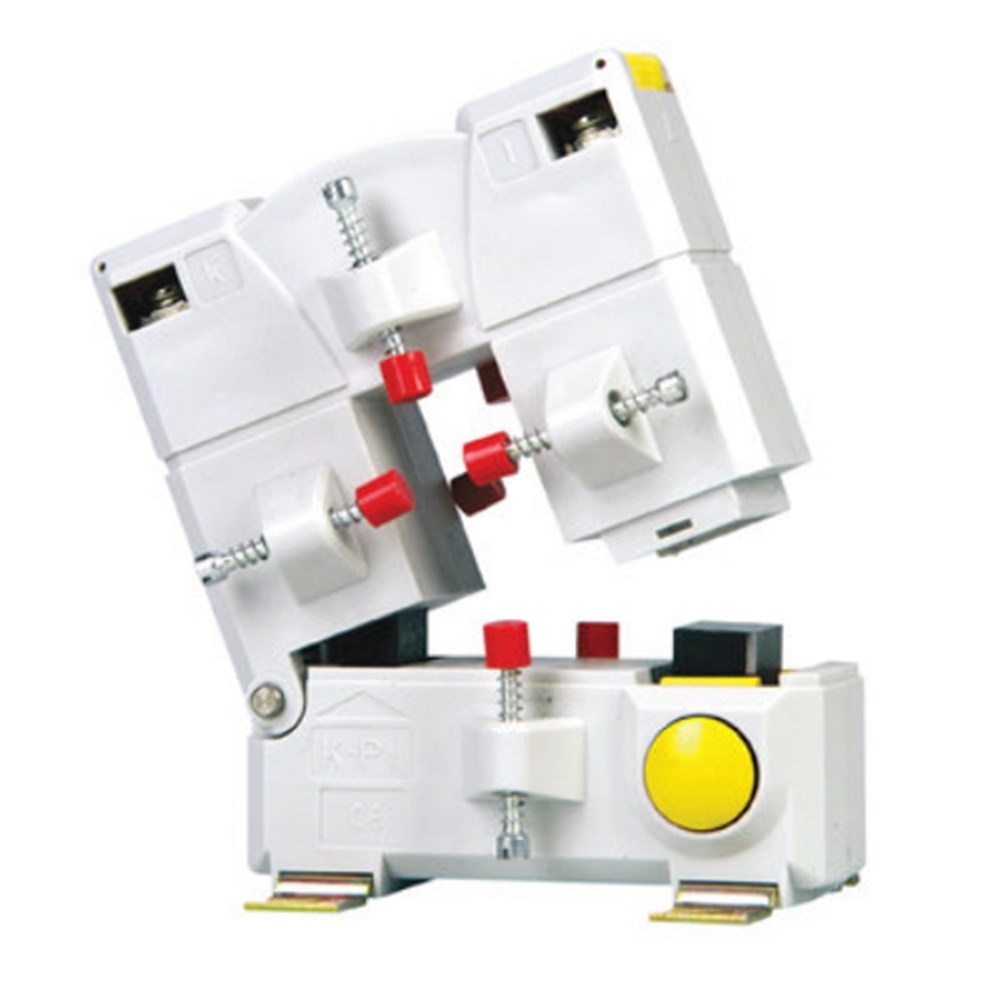

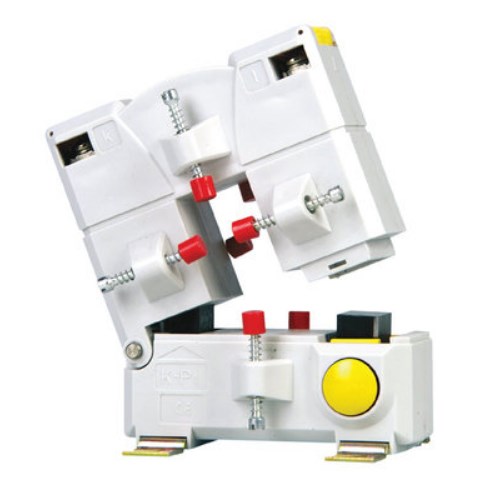

SOCOMEC SPLIT-CORE CT TO 23 200A/5A CLASS 3 2,5VA 192T4603

This split-core current transformer has a current ratio of 200/5 and an accuracy class of 3 at 2.5VA. It has a dielectric quality of 3kV/1min at 50Hz and an insulation class of E (120 °C). The transformer is equipped with removable terminal covers as standard. The dimensions of the TO23 type are 106Hx93Wx58Dmm with an opening of 23x33mm. It can be easily adapted to any type of mounting, including flat, DIN rail, or back plate, using two screw-on metal brackets or a clip-on DIN rail fastener.
